產品描述

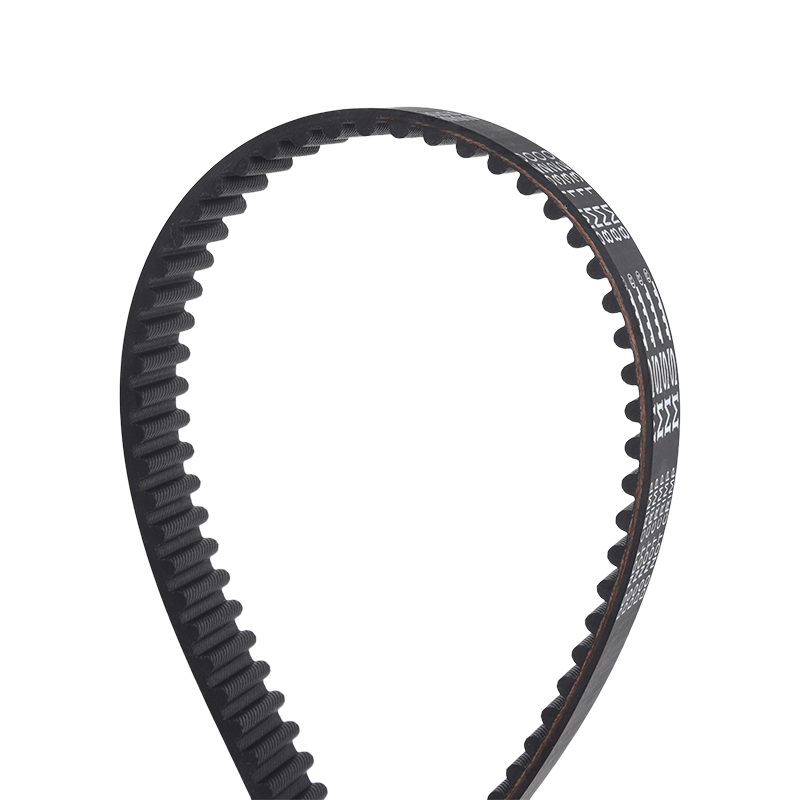

橡膠同步帶由氯丁橡膠、玻璃纖維線和彈性尼龍布三種主要材料制成，是用于各類機械傳動的一種特殊橡膠傳動帶。它是利用帶齒和帶齒輪的吻合進行傳動，因而兼有齒輪傳動、鏈傳動和帶傳動三者的綜合特性。

利用橡膠同步帶傳動具有以下優點：

保證傳動輪間呈無滑差的同步傳動

傳動速比可達到10，傳動速度可達40M/S

傳動功率可從幾瓦到上千瓦

傳動結構簡單輕型，并無需潤滑

不需要大的初張力，軸負載小

運轉噪音低

維護簡單，更換方便等

齒形代號	型號	節距	齒高	帶厚	詳情

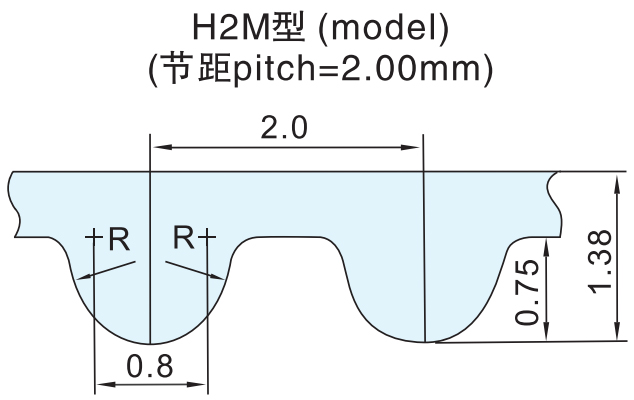

H	2M	2	0.75	1.36	詳情

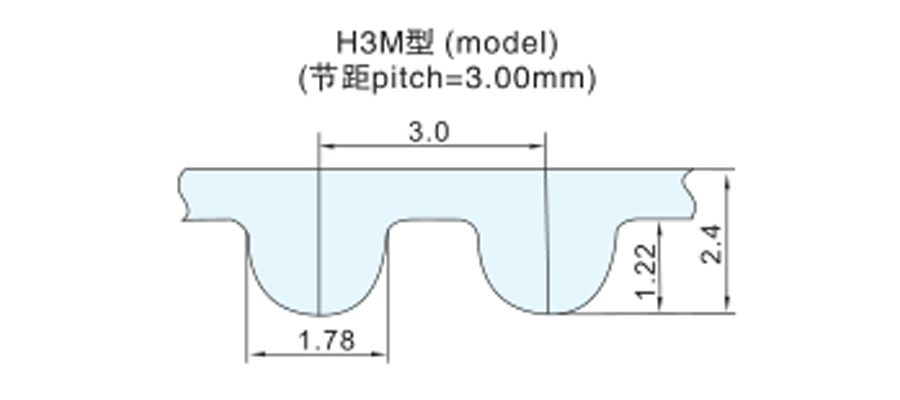

	3M	3	1.22	2.4	詳情

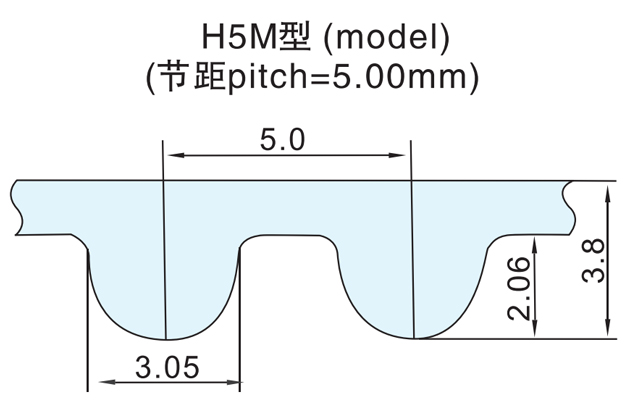

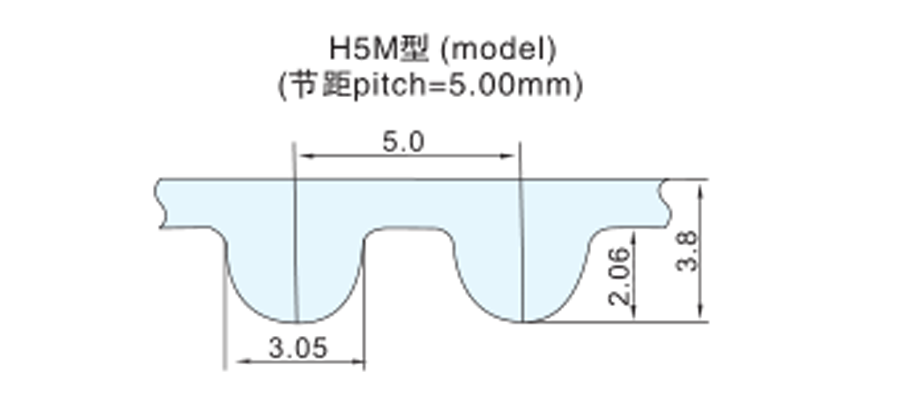

	5M	5	2.06	3.8	詳情

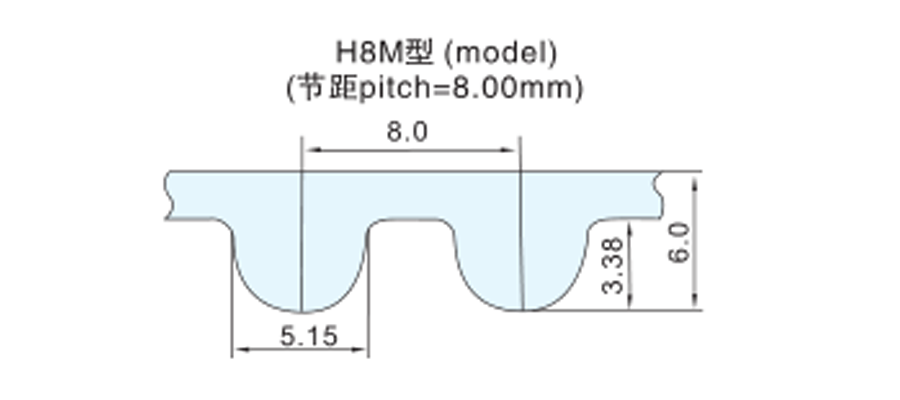

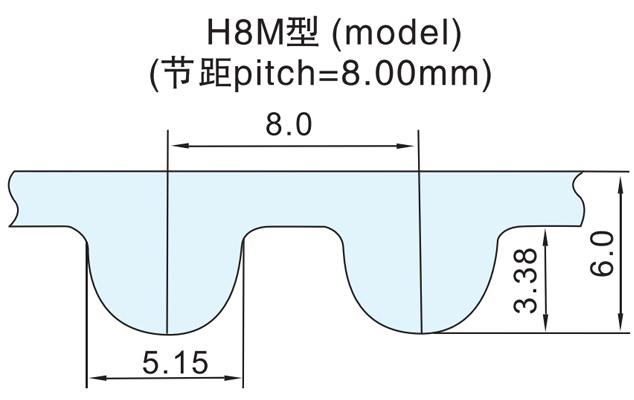

	8M	8	3.36	6.00	詳情
	14M	14	6.02	10.00	詳情
	20M	20	8.4	13.20	詳情

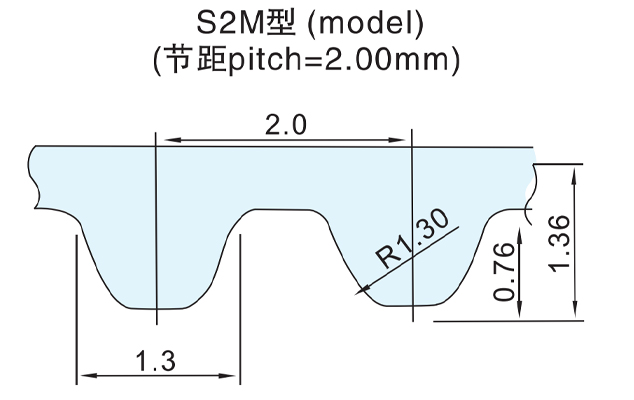

S	S2M	2	0.76	1.36	詳情

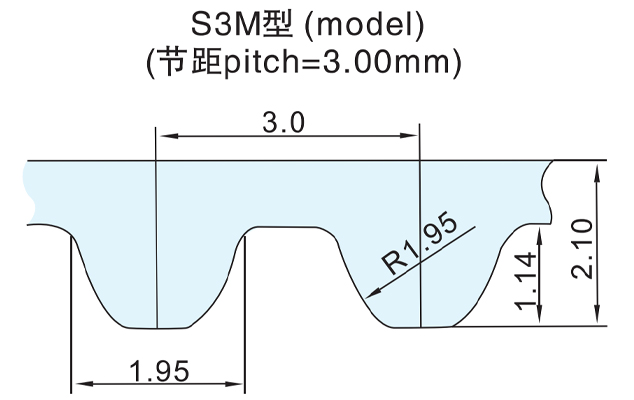

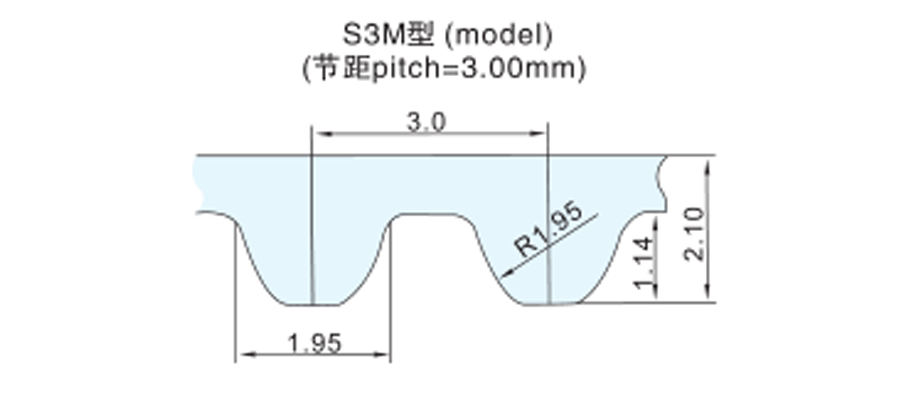

	S3M	3	1.14	2.20	詳情

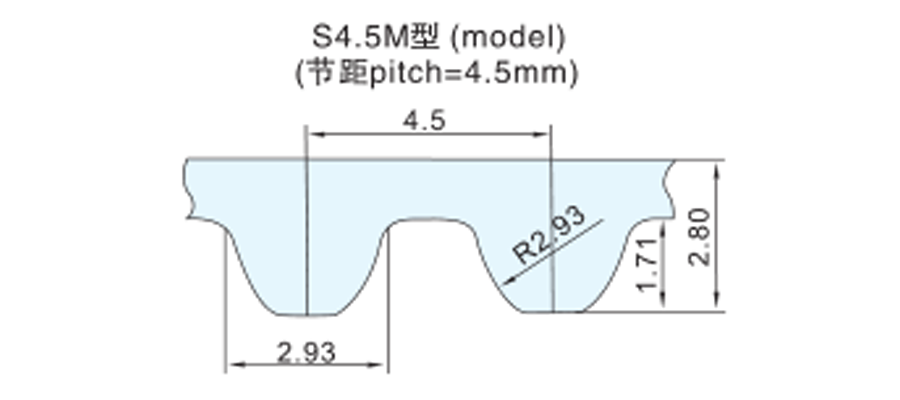

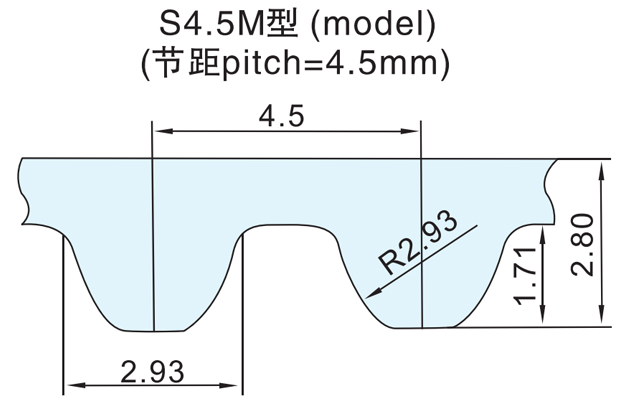

	S4.5M	4.5	1.71	2.81	詳情

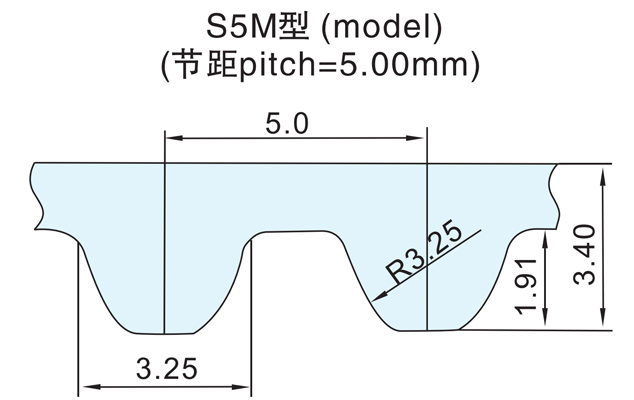

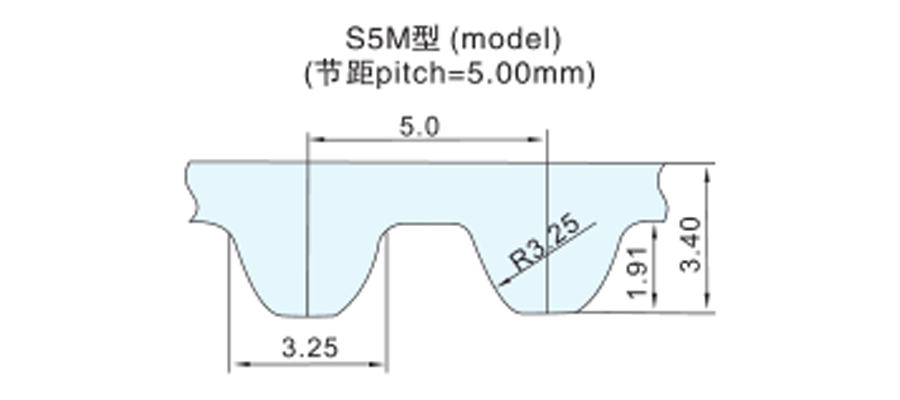

	S5M	5	1.91	3.4	詳情

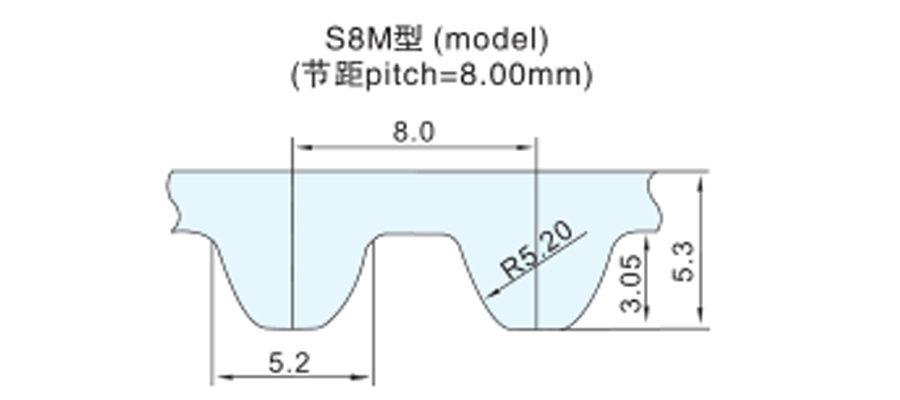

	S8M	8	3.05	5.3	詳情

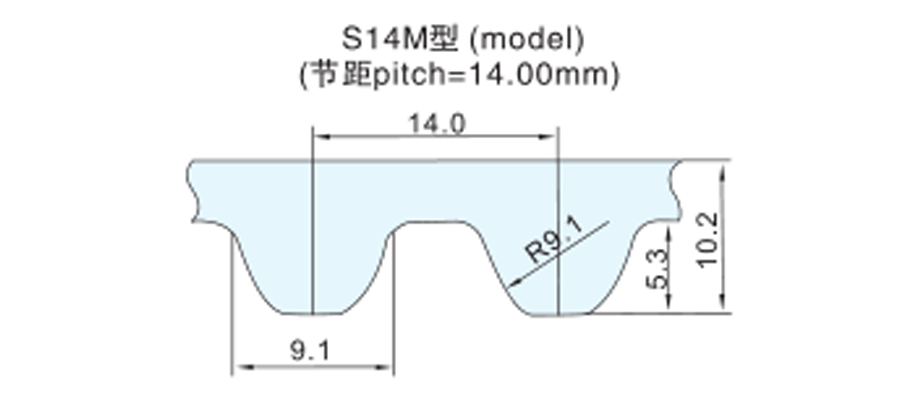

	S14M	14	5.3	10.2	詳情

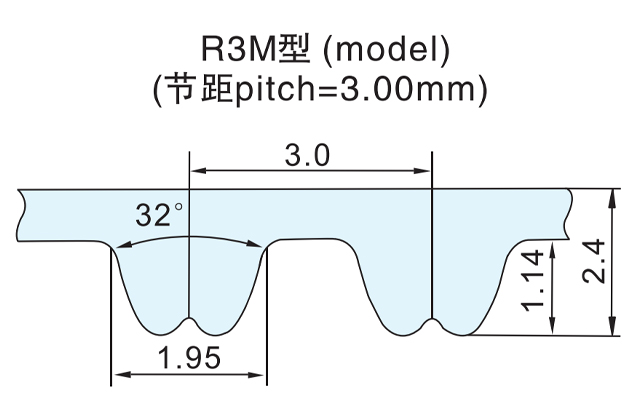

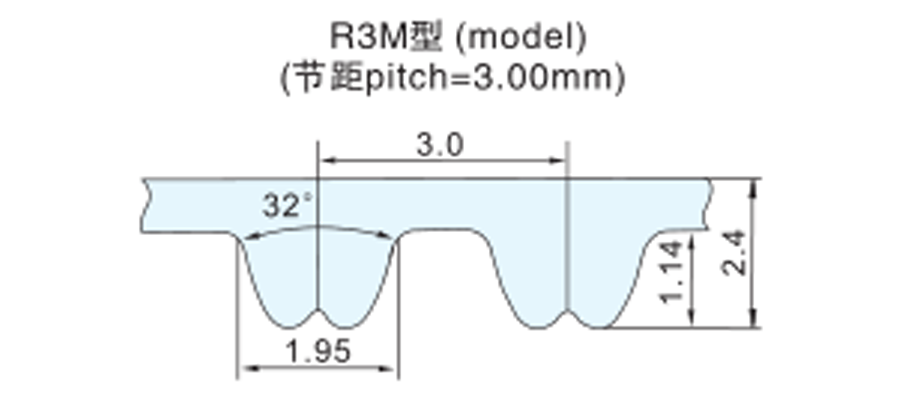

R	R3M	3	1.15	1.9	詳情

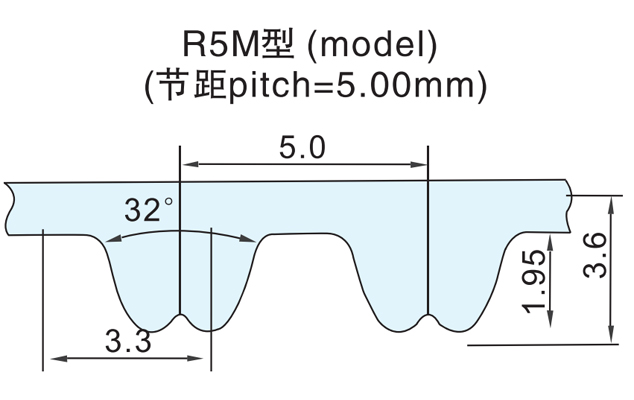

	R5M	5	1.95	3.5	詳情

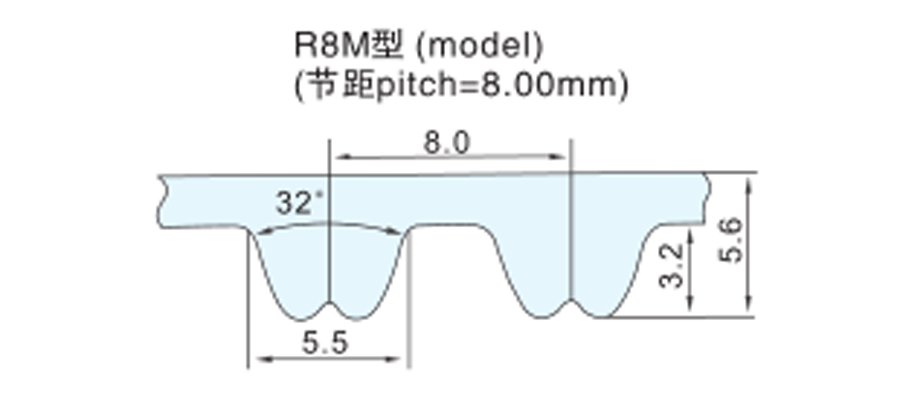

	R8M	8	3.2	5.5	詳情

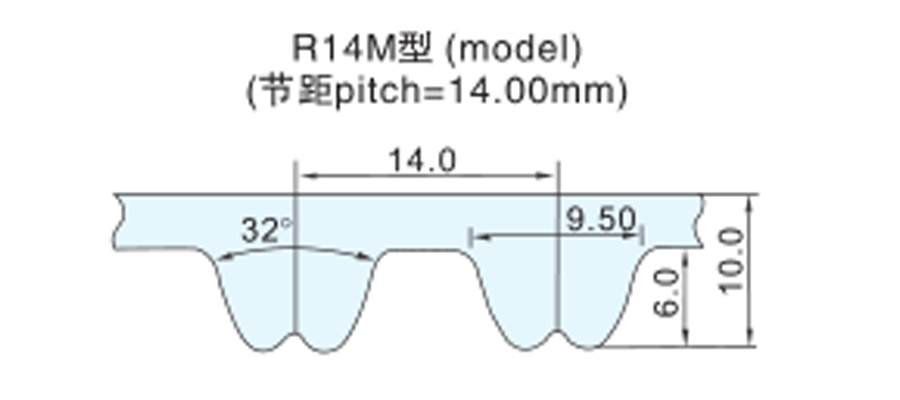

	R14M	14	6.00	10	詳情

推薦產品

留言

“如果您有任何意見或疑問，請隨時與我們聯系！”

產品類別

推薦產品

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
S2M-80	80	40	S2M-304*	304	152	S2M-620	620	310
S2M-90*	90	45	S2M-306*	306	153	S2M-630*	630	315
S2M-92*	92	46	S2M-316*	316	158	S2M-650	650	325
S2M-96*	96	48	S2M-320*	320	160	S2M-656*	656	328
S2M-108*	108	54	S2M-324*	324	162	S2M-660*	660	330
S2M-112*	112	56	S2M-328*	328	164	S2M-666*	666	333
S2M-114*	114	57	S2M-334*	334	167	S2M-688*	688	344
S2M-128*	128	64	S2M-336*	336	168	S2M-710*	710	355
S2M-130*	130	65	S2M-338*	338	169	S2M-726*	726	363
S2M-132*	132	66	S2M-344*	344	172	S2M-750*	750	375
S2M-134*	134	67	S2M-352*	352	176	S2M-760	760	380
S2M-140*	140	70	S2M-354*	354	177	S2M-766*	766	383
S2M-142*	142	71	S2M-360*	360	180	S2M-800*	800	400
S2M-144*	144	72	S2M-370*	370	185	S2M-810*	810	405
S2M-156	156	78	S2M-380*	380	190	S2M-828*	828	414
S2M-158*	158	79	S2M-394*	394	197	S2M-856*	856	428
S2M-160*	160	80	S2M-396*	396	198	S2M-860*	860	430
S2M-168*	168	84	S2M-400*	400	200	S2M-880*	880	440
S2M-172*	172	86	S2M-406*	406	203	S2M-882*	882	441
S2M-176*	176	88	S2M-420*	420	210	S2M-892*	892	446
S2M-180*	180	90	S2M-430*	430	215	S2M-920*	920	460
S2M-184*	184	92	S2M-436*	436	218	S2M-930*	930	465
S2M-188*	188	94	S2M-452*	452	226	S2M-940*	940	470
S2M-192*	192	97	S2M-460*	460	230	S2M-976*	976	488
S2M-198*	198	99	S2M-468*	468	234	S2M-990	990	495
S2M-200*	200	100	S2M-480*	480	240	S2M-1016*	1016	508
S2M-204*	204	102	S2M-500*	500	250	S2M-1100	1100	550
S2M-208*	208	104	S2M-506*	506	253	S2M-1166	1166	583
S2M-210*	210	105	S2M-520*	520	260	S2M-1224*	1224	612
S2M-212*	212	106	S2M-530*	530	265	S2M-1250*	1250	625
S2M-214*	214	107	S2M-536*	536	268	S2M-1274*	1274	637
S2M-218*	218	109	S2M-546*	546	273	S2M-1300	1300	650
S2M-220*	220	110	S2M-548*	548	274	S2M-1400	1400	700
S2M-224*	224	112	S2M-552*	552	276	S2M-1466*	1466	733
S2M-234*	234	117	S2M-556*	556	278	S2M-1480	1480	740
S2M-236*	236	118	S2M-560*	560	280	S2M-1500	1500	750
S2M-260*	260	130	S2M-562*	562	281	S2M-1600	1600	800
S2M-262*	262	131	S2M-568*	568	284	S2M-1800	1800	900
S2M-264*	264	132	S2M-572	572	286	S2M-2000	2000	1000
S2M-272*	272	136	S2M-580*	580	290	S2M-2200	2200	1100
S2M-276*	276	138	S2M-586*	586	293	S2M-2300	2300	1150
S2M-280*	280	140	S2M-590	590	295	S2M-2500	2500	1250
S2M-284*	284	142	S2M-596	596	298	S2M-3000	3000	1500
S2M-290*	290	145	S2M-600*	600	300	S2M-3500	3500	1750
S2M-292*	292	146	S2M-604*	604	302	S2M-4200	4200	2100
S2M-300*	300	150	S2M-610	610	305	S2M-5600	5600	2800

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
S3M-114*	114	38	S3M-333*	333	111	S3M-585*	585	195
S3M-120*	120	40	S3M-336*	336	112	S3M-588*	588	196
S3M-126*	126	42	S3M-339*	339	113	S3M-591*	591	197
S3M-129*	129	43	S3M-345*	345	115	S3M-594*	594	198
S3M-138*	138	46	S3M-351*	351	117	S3M-597*	597	199
S3M-141*	141	47	S3M-354*	354	118	S3M-600*	600	200
S3M-147*	147	49	S3M-360*	360	120	S3M-603*	603	201
S3M-150*	150	50	S3M-363*	363	121	S3M-606*	606	202
S3M-162*	162	54	S3M-366*	366	122	S3M-609*	609	203
S3M-168	168	56	S3M-375*	375	125	S3M-621*	621	207
S3M-174*	174	58	S3M-384*	384	128	S3M-633*	633	211
S3M-177*	177	59	S3M-396*	396	132	S3M-636*	636	212
S3M-180*	180	60	S3M-399*	399	133	S3M-645*	645	215
S3M-183*	183	61	S3M-405	405	135	S3M-657*	657	219
S3M-186*	186	62	S3M-414	414	138	S3M-660*	660	220
S3M-189*	189	63	S3M-417	417	139	S3M-666*	666	222
S3M-192*	192	64	S3M-420*	420	140	S3M-690*	690	230
S3M-195	195	65	S3M-423*	423	141	S3M-705*	705	235
S3M-201*	201	67	S3M-435*	435	145	S3M-711*	711	237
S3M-204*	204	68	S3M-447*	447	149	S3M-714*	714	238
S3M-207*	207	69	S3M-453*	453	151	S3M-738*	738	246
S3M-210*	210	70	S3M-462*	462	154	S3M-750*	750	250
S3M-216*	216	72	S3M-468*	468	156	S3M-753*	753	251
S3M-219*	219	73	S3M-471*	471	157	S3M-765*	765	765
S3M-222*	222	74	S3M-474*	474	158	S3M-780*	780	260
S3M-225	225	75	S3M-477*	477	159	S3M-804*	804	268
S3M-231*	231	77	S3M-480*	480	160	S3M-819*	819	273
S3M-234*	234	78	S3M-483*	483	161	S3M-828*	828	276
S3M-237*	237	79	S3M-486*	486	162	S3M-882*	882	294
S3M-240*	240	80	S3M-489*	489	163	S3M-1188*	1188	396
S3M-243*	243	81	S3M-495*	495	165	S3M-1221*	1221	407
S3M-246*	246	82	S3M-498*	498	166	S3M-1227*	1227	409
S3M-252*	252	84	S3M-501*	501	167	S3M-1236*	1236	412
S3M-255*	255	85	S3M-510*	510	170	S3M-1350	1350	450
S3M-258*	258	86	S3M-513*	513	171	S3M-1500	1500	500
S3M-261*	261	87	S3M-516*	516	172	S3M-1572*	1572	524
S3M-264*	264	88	S3M-519*	519	173	S3M-1596*	1596	532
S3M-267*	267	89	S3M-522	522	174	S3M-1809	1809	603
S3M-270*	270	90	S3M-525*	525	175	S3M-2025	2025	675
S3M-273*	273	91	S3M-534	534	178	S3M-2100	2100	700
S3M-276*	276	92	S3M-537*	537	179	S3M-2115	2115	705
S3M-282*	282	94	S3M-540*	540	180	S3M-2175	2175	725
S3M-285*	285	95	S3M-546*	546	182	S3M-2190	2190	730
S3M-288*	288	96	S3M-549*	549	183	S3M-2250	2250	750
S3M-294*	294	98	S3M-552*	552	184	S3M-2340	2340	780
S3M-300*	300	100	S3M-555*	555	185	S3M-2400	2400	800
S3M-309*	309	103	S3M-558*	558	186	S3M-3000	3000	1000
S3M-312*	312	104	S3M-561*	561	187	S3M-3600	3600	1200
S3M-315*	315	105	S3M-564*	564	188	S3M-4800	4800	1600
S3M-318*	318	106	S3M-570*	570	190	S3M-5340	5340	1780
S3M-321*	321	107	S3M-573*	573	191	S3M-5598	5598	1866
S3M-324*	324	108	S3M-579*	579	193	?	?	?
S3M-327*	327	109	S3M-582*	582	194	?	?

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
S4.5M-135	135	30	S4.5M-369*	369	82	S4.5M-1350	1350	300
S4.5M-162	162	36	S4.5M-396*	396	88	S4.5M-1647	1647	366
S4.5M-180	180	40	S4.5M-500*	500	111	S4.5M-1998	1998	444
S4.5M-207	207	46	S4.5M-504*	504	112	S4.5M-2250	2250	500
S4.5M-211.5*	211.50	47	S4.5M-550*	550	122	S4.5M-2475	2475	550
S4.5M-216*	216	48	S4.5M-567*	567	126	S4.5M-2700	2700	600
S4.5M-225*	225	50	S4.5M-630*	630	140	S4.5M-2880	2880	640
S4.5M-234*	234	52	S4.5M-652.5*	652.5	145	S4.5M-2970	2970	660
S4.5M-239*	239	53	S4.5M-711*	711	158	S4.5M-3060	3060	680
S4.5M-243	243	54	S4.5M-738*	738	164	S4.5M-3240	3240	720
S4.5M-252*	252	56	S4.5M-801*	801	178	S4.5M-3375	3375	750
S4.5M-284*	284	63	S4.5M-864*	864	192	S4.5M-3600	3600	800
S4.5M-297*	297	66	S4.5M-904.5*	904.5	201	S4.5M-4050	4050	900
S4.5M-306*	306	68	S4.5M-931*	931	207	S4.5M-4410	4410	980
S4.5M-315*	315	70	S4.5M-949.5*	949.5	211	S4.5M-4500	4500	1000
S4.5M-333*	333	74	S4.5M-1012.5	1012.5	225	S4.5M-4995	4995	1110
S4.5M-337.5*	337.50	75	S4.5M-1030.5*	1030.5	229	S4.5M-5310	5310	1180
S4.5M-342*	342	76	S4.5M-1080	1080	240	S4.5M-5508	5508	1224
S4.5M-351*	351	78	S4.5M-1170	1170	260	S4.5M-5535	5535	1230
S4.5M-360*	360	80	S4.5M-1260	1260	280	S4.5M-5571	5571	1238

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
S5M-150	150	30	S5M-550*	550	110	S5M-1100*	1100	220
S5M-200	200	40	S5M-560*	560	112	S5M-1115*	1115	223
S5M-225*	225	45	S5M-565*	565	113	S5M-1125*	1125	225
S5M-230*	230	46	S5M-575*	575	115	S5M-1135*	1135	227
S5M-255*	255	51	S5M-590*	590	118	S5M-1145*	1145	229
S5M-260*	260	52	S5M-600*	600	120	S5M-1150*	1150	230
S5M-265*	265	53	S5M-610*	610	122	S5M-1195*	1195	239
S5M-270*	270	54	S5M-615*	615	123	S5M-1200*	1200	240
S5M-285*	285	57	S5M-625*	625	125	S5M-1225*	1225	245
S5M-295*	295	59	S5M-635*	635	127	S5M-1270*	1270	254
S5M-300*	300	60	S5M-640*	640	128	S5M-1295*	1295	259
S5M-320*	320	64	S5M-645*	645	129	S5M-1350*	1350	270
S5M-325*	325	65	S5M-650*	650	130	S5M-1380*	1380	276
S5M-340*	340	68	S5M-655*	655	131	S5M-1420*	1420	284
S5M-350*	350	70	S5M-665*	665	133	S5M-1500*	1500	300
S5M-370*	370	74	S5M-670*	670	134	S5M-1575*	1575	315
S5M-375*	375	75	S5M-675*	675	135	S5M-1585*	1585	317
S5M-380*	380	76	S5M-690*	690	138	S5M-1595*	1595	319
S5M-385*	385	77	S5M-700*	700	140	S5M-1600*	1600	320
S5M-390*	390	78	S5M-710*	710	142	S5M-1605*	1605	321
S5M-400*	400	80	S5M-725*	725	145	S5M-1685*	1685	337
S5M-410*	410	82	S5M-740*	740	148	S5M-1690*	1690	338
S5M-415*	415	83	S5M-750*	750	150	S5M-1700*	1700	340
S5M-420*	420	84	S5M-765*	765	153	S5M-1750	1750	350
S5M-425*	425	85	S5M-770*	770	154	S5M-1800*	1800	360
S5M-430*	430	86	S5M-780*	780	156	S5M-1945*	1945	389
S5M-435*	435	87	S5M-800*	800	160	S5M-2000*	2000	400
S5M-445*	445	89	S5M-810*	810	162	S5M-2100*	2100	420
S5M-450*	450	90	S5M-815*	815	163	S5M-2145*	2145	429
S5M-455*	455	91	S5M-830*	830	166	S5M-2525*	2525	505
S5M-475*	475	95	S5M-850*	850	170	S5M-2895	2895	579
S5M-490*	490	98	S5M-870*	870	174	S5M-3200	3200	640
S5M-500*	500	100	S5M-890*	890	178	S5M-3280*	3280	656
S5M-510*	510	102	S5M-900*	900	180	S5M-3500	3500	700
S5M-520*	520	104	S5M-925*	925	185	S5M-4000	4000	800
S5M-525*	525	105	S5M-935*	935	187	S5M-4600	4600	920
S5M-535*	535	107	S5M-1000*	1000	200	S5M-5000	5000	1000
S5M-540*	540	108	S5M-1050*	1050	210	S5M-5600	5600	1120

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
S8M-376*	376	47	S8M-1000*	1000	125	S8M-1632*	1632	204
S8M-400*	400	50	S8M-1016*	1016	127	S8M-1640*	1640	205
S8M-424*	424	53	S8M-1024*	1024	128	S8M-1648*	1648	206
S8M-440*	440	55	S8M-1032*	1032	129	S8M-1672*	1672	209
S8M-464*	464	58	S8M-1040*	1040	130	S8M-1680*	1680	210
S8M-480*	480	60	S8M-1056*	1056	132	S8M-1696*	1696	212
S8M-488*	488	61	S8M-1064*	1064	133	S8M-1704*	1704	213
S8M-496*	496	62	S8M-1072*	1072	134	S8M-1720*	1720	215
S8M-512*	512	64	S8M-1080*	1080	135	S8M-1728*	1728	216
S8M-520*	520	65	S8M-1096*	1096	137	S8M-1760*	1760	220
S8M-528*	528	66	S8M-1112*	1112	139	S8M-1776*	1776	222
S8M-560*	560	70	S8M-1120*	1120	140	S8M-1792*	1792	224
S8M-576*	576	72	S8M-1128*	1128	141	S8M-1800*	1800	225
S8M-584*	584	73	S8M-1136*	1136	142	S8M-1880*	1880	235
S8M-592*	592	74	S8M-1152*	1152	144	S8M-1904*	1904	238
S8M-600*	600	75	S8M-1160*	1160	145	S8M-1912*	1912	239
S8M-608*	608	76	S8M-1168*	1168	146	S8M-1936*	1936	242
S8M-632*	632	79	S8M-1184*	1184	148	S8M-1952*	1952	244
S8M-640*	640	80	S8M-1192*	1192	149	S8M-2000*	2000	250
S8M-656*	656	82	S8M-1200*	1200	150	S8M-2032*	2032	254
S8M-680*	680	85	S8M-1216*	1216	152	S8M-2048*	2048	256
S8M-696*	696	87	S8M-1224*	1224	153	S8M-2056*	2056	257
S8M-712*	712	89	S8M-1240*	1240	155	S8M-2104*	2104	263
S8M-720*	720	90	S8M-1248*	1248	156	S8M-2120*	2120	265
S8M-752*	752	94	S8M-1256*	1256	157	S8M-2160*	2160	270
S8M-760*	760	95	S8M-1264*	1264	158	S8M-2240*	2240	280
S8M-776*	776	97	S8M-1280*	1280	160	S8M-2272*	2272	284
S8M-792*	792	99	S8M-1296*	1296	162	S8M-2304*	2304	288
S8M-800*	800	100	S8M-1304*	1304	163	S8M-2400*	2400	300
S8M-824*	824	103	S8M-1312*	1312	164	S8M-2432*	2432	304
S8M-832*	832	104	S8M-1320*	1320	165	S8M-2496*	2496	312
S8M-840*	840	105	S8M-1344*	1344	168	S8M-2504*	2504	313
S8M-848*	848	106	S8M-1352*	1352	169	S8M-2600*	2600	325
S8M-856*	856	107	S8M-1360*	1360	170	S8M-2680*	2680	335
S8M-864*	864	108	S8M-1368*	1368	171	S8M-2800*	2800	350
S8M-880*	880	110	S8M-1384*	1384	173	S8M-2848*	2848	356
S8M-888*	888	111	S8M-1392*	1392	174	S8M-2864*	2864	358
S8M-896*	896	112	S8M-1400*	1400	175	S8M-2880*	2880	360
S8M-904*	904	113	S8M-1424*	1424	178	S8M-2920*	2920	365
S8M-912*	912	114	S8M-1440*	1440	180	S8M-3048*	3048	381
S8M-920*	920	115	S8M-1480*	1480	185	S8M-3200*	3200	400
S8M-928*	928	116	S8M-1512*	1512	189	S8M-3280*	3280	410
S8M-936*	936	117	S8M-1520*	1520	190	S8M-3680*	3680	460
S8M-944*	944	118	S8M-1528*	1528	191	S8M-4480	4480	560
S8M-952*	952	119	S8M-1544*	1544	193	S8M-4880*	4880	610
S8M-960*	960	120	S8M-1552*	1552	194	S8M-5320*	5320	665
S8M-976*	976	122	S8M-1592*	1592	199	S8M-5600	5600	700
S8M-984*	984	123	S8M-1600*	1600	200	?	?	?
S8M-992*	992	124	S8M-1624*	1624	203	?	?

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
S14M-700	700	50	S14M-1442	1442	103	S14M-2002*	2002	143
S14M-714*	714	51	S14M-1456*	1456	104	S14M-2072	2072	148
S14M-770	770	55	S14M-1470	1470	105	S14M-2100*	2100	150
S14M-812	812	58	S14M-1512*	1512	108	S14M-2240*	2240	160
S14M-840	840	60	S14M-1526	1526	109	S14M-2310*	2310	165
S14M-910	910	65	S14M-1540*	1540	110	S14M-2324*	2324	166
S14M-924	924	66	S14M-1568	1568	112	S14M-2380*	2380	170
S14M-966*	966	69	S14M-1596	1596	114	S14M-2450*	2450	175
S14M-980	980	70	S14M-1610*	1610	115	S14M-2548*	2548	182
S14M-1008	1008	72	S14M-1624	1624	116	S14M-2590*	2590	185
S14M-1036	1036	74	S14M-1652	1652	118	S14M-2660*	2660	190
S14M-1050	1050	75	S14M-1666	1666	119	S14M-2800*	2800	200
S14M-1092	1092	78	S14M-1680	1680	120	S14M-3150*	3150	225
S14M-1120*	1120	80	S14M-1736	1736	124	S14M-3220	3220	230
S14M-1148	1148	82	S14M-1750*	1750	125	S14M-3360*	3360	240
S14M-1190*	1190	85	S14M-1764*	1764	126	S14M-3598	3598	257
S14M-1204*	1204	86	S14M-1778*	1778	127	S14M-3990	3990	285
S14M-1246	1246	89	S14M-1806*	1806	129	S14M-4480	4480	320
S14M-1260	1260	90	S14M-1820	1820	130	S14M-4998	4998	357
S14M-1288*	1288	92	S14M-1876	1876	134	S14M-5320	5320	380
S14M-1330	1330	95	S14M-1890*	1890	135	S14M-5460	5460	390
S14M-1344*	1344	96	S14M-1932	1932	138	S14M-5600	5600	400
S14M-1372	1372	98	S14M-1960	1960	140	?	?	?
S14M-1400*	1400	100	S14M-1988	1988	142	?	?

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
2M-52*	52	26	2M-232*	232	116	2M-460*	460	230
2M-66*	66	33	2M-234*	234	117	2M-468*	468	234
2M-78*	78	39	2M-240*	240	120	2M-470*	470	235
2M-82*	82	41	2M-242*	242	121	2M-476*	476	238
2M-86*	86	43	2M-244*	244	122	2M-478*	478	239
2M-90*	90	45	2M-248*	248	124	2M-488*	488	244
2M-92*	92	46	2M-250*	250	125	2M-490*	490	245
2M-96*	96	48	2M-252*	252	126	2M-492*	492	246
2M-100*	100	50	2M-254*	254	127	2M-494*	494	247
2M-108*	108	54	2M-256*	256	128	2M-500*	500	250
2M-110*	110	55	2M-260*	260	130	2M-506*	506	253
2M-112*	112	56	2M-262*	262	131	2M-516*	516	258
2M-114*	114	57	2M-264*	264	132	2M-530*	530	265
2M-116*	116	58	2M-266*	266	133	2M-558*	558	279
2M-118*	118	59	2M-268*	268	134	2M-578*	578	289
2M-120*	120	60	2M-270*	270	135	2M-600*	600	300
2M-122*	122	61	2M-274*	274	137	2M-622*	622	311
2M-124*	124	62	2M-276*	276	138	2M-634*	634	317
2M-126*	126	63	2M-280*	280	140	2M-640*	640	320
2M-128*	128	64	2M-282*	282	141	2M-656*	656	328
2M-130*	130	65	2M-280*	280	140	2M-660*	660	330
2M-134*	134	67	2M-286*	286	143	2M-686*	686	343
2M-138*	138	69	2M-288*	288	144	2M-690*	690	345
2M-140*	140	70	2M-290*	290	145	2M-702*	702	351
2M-142*	142	71	2M-292*	292	146	2M-730*	730	365
2M-144*	144	72	2M-294*	294	147	2M-750	750	375
2M-146*	146	73	2M-296*	296	148	2M-782*	782	391
2M-148*	148	74	2M-300*	300	150	2M-800	800	400
2M-150*	150	75	2M-304*	304	152	2M-810*	810	405
2M-152*	152	76	2M-306*	306	153	2M-840*	840	420
2M-154*	154	77	2M-310*	310	155	2M-850	850	425
2M-156*	156	78	2M-312*	312	156	2M-852*	852	426
2M-158*	158	79	2M-320*	320	160	2M-926	926	463
2M-160*	160	80	2M-322*	322	161	2M-930*	930	465
2M-162*	162	81	2M-324*	324	162	2M-1068*	1068	534
2M-164*	164	82	2M-328*	328	164	2M-1100	1100	550
2M-168*	168	84	2M-336*	336	168	2M-1150*	1150	575
2M-170*	170	85	2M-338*	338	169	2M-1500	1500	750
2M-172*	172	86	2M-340*	340	170	2M-1510*	1510	755
2M-174*	174	87	2M-342*	342	171	2M-1800	1800	900
2M-176*	176	88	2M-344*	344	172	2M-2000	2000	1000
2M-178*	178	89	2M-348*	348	174	2M-2200	2200	1100
2M-180*	180	90	2M-350*	350	175	2M-2270*	2270	1135
2M-184*	184	92	2M-352	352	176	2M-2500	2500	1250
2M-186*	186	93	2M-354*	354	177	2M-2800	2800	1400
2M-188*	188	94	2M-356*	356	178	2M-2900	2900	1450
2M-190*	190	95	2M-364*	364	182	2M-3000	3000	1500
2M-192*	192	96	2M-366*	366	183	2M-3200	3200	1600
2M-194*	194	97	2M-370*	370	185	2M-3400	3400	1700
2M-196*	196	98	2M-372*	372	186	2M-3700	3700	1850
2M-200*	200	100	2M-380*	380	190	2M-3800	3800	1900
2M-208*	208	104	2M-384*	384	192	2M-4000	4000	2000
2M-210*	210	105	2M-388*	388	194	2M-4500	4500	2250
2M-212*	212	106	2M-392*	392	196	2M-4700	4700	2350
2M-214*	214	107	2M-394*	394	197	2M-4900	4900	2450
2M-216*	216	108	2M-400*	400	200	2M-5000	5000	2500
2M-218*	218	109	2M-410*	410	205	2M-5100	5100	2550
2M-220*	220	110	2M-420*	420	210	2M-5200	5200	2600
2M-224*	224	112	2M-428*	428	214	2M-5400	5400	2700
2M-226*	226	113	2M-440*	440	220	2M-5600	5600	2800
2M-230*	230	115	2M-448*	448	224	?	?

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
3M-105*	105	35	3M-342*	342	114	3M-612*	612	204
3M-111*	111	37	3M-345*	345	115	3M-627*	627	209
3M-114*	114	38	3M-348*	348	116	3M-630*	630	210
3M-117*	117	39	3M-351*	351	117	3M-633*	633	211
3M-120*	120	40	3M-357*	357	119	3M-636*	636	212
3M-123*	123	41	3M-360*	360	120	3M-645*	645	215
3M-126*	126	42	3M-363*	363	121	3M-648*	648	216
3M-129*	129	43	3M-366*	366	122	3M-657*	657	219
3M-132*	132	44	3M-369*	369	123	3M-660*	660	220
3M-135*	135	45	3M-372*	372	124	3M-663*	663	221
3M-138*	138	46	3M-375*	375	125	3M-669*	669	223
3M-141*	141	47	3M-378*	378	126	3M-672*	672	224
3M-144*	144	48	3M-381*	381	127	3M-675*	675	225
3M-147*	147	49	3M-384*	384	128	3M-684*	684	228
3M-150*	150	50	3M-387*	387	129	3M-687*	687	229
3M-153*	153	51	3M-390*	390	130	3M-696*	696	232
3M-156*	156	52	3M-393*	393	131	3M-708*	708	236
3M-159*	159	53	3M-396*	396	132	3M-711*	711	237
3M-162*	162	54	3M-399*	399	133	3M-717*	717	239
3M-165*	165	55	3M-402*	402	134	3M-732*	732	244
3M-168*	168	56	3M-405*	405	135	3M-735*	735	245
3M-171*	171	57	3M-411*	411	137	3M-738*	738	246
3M-174*	174	58	3M-417*	417	139	3M-753*	753	251
3M-177*	177	59	3M-420*	420	140	3M-756*	756	252
3M-180*	180	60	3M-423*	423	141	3M-768*	768	256
3M-183*	183	61	3M-426*	426	142	3M-804*	804	268
3M-186*	186	62	3M-432*	432	144	3M-810*	810	270
3M-189*	189	63	3M-435*	435	145	3M-813*	813	271
3M-192*	192	64	3M-438*	438	146	3M-843*	843	281
3M-195*	195	65	3M-441*	441	147	3M-858*	858	286
3M-198*	198	66	3M-444*	444	148	3M-885*	885	295
3M-201*	201	67	3M-447*	447	149	3M-900*	900	300
3M-204*	204	68	3M-450*	450	150	3M-909*	909	303
3M-207*	207	69	3M-453*	453	151	3M-921*	921	307
3M-210*	210	70	3M-456*	456	152	3M-936*	936	312
3M-213*	213	71	3M-459*	459	153	3M-960*	960	320
3M-216*	216	72	3M-462*	462	154	3M-966*	966	322
3M-219*	219	73	3M-465*	465	155	3M-1014*	1014	338
3M-222*	222	74	3M-468	468	156	3M-1050*	1050	350
3M-225*	225	75	3M-474*	474	158	3M-1062*	1062	354
3M-228*	228	76	3M-477*	477	159	3M-1071*	1071	357
3M-231*	231	77	3M-480*	480	160	3M-1125*	1125	375
3M-234*	234	78	3M-483*	483	161	3M-1245*	1245	415
3M-237*	237	79	3M-486*	486	162	3M-1263*	1263	421
3M-240*	240	80	3M-489*	489	163	3M-1275	1275	425
3M-243*	243	81	3M-492*	492	164	3M-1278	1278	426
3M-246*	246	82	3M-495*	495	165	3M-1290	1290	430
3M-249*	249	83	3M-498*	498	166	3M-1305	1305	435
3M-252*	252	84	3M-501*	501	167	3M-1320	1320	440
3M-255*	255	85	3M-504*	504	168	3M-1344*	1344	448
3M-258*	258	86	3M-507*	507	169	3M-1350	1350	450
3M-261*	261	87	3M-510*	510	170	3M-1464*	1464	488
3M-264*	264	88	3M-513*	513	171	3M-1500	1500	500
3M-267*	267	89	3M-519*	519	173	3M-1530*	1530	510
3M-270*	270	90	3M-522*	522	174	3M-1569*	1569	523
3M-273*	273	91	3M-525*	525	175	3M-1680*	1680	560
3M-276*	276	92	3M-531*	531	177	3M-1800	1800	600
3M-279*	279	93	3M-534*	534	178	3M-1863*	1863	621
3M-282*	282	94	3M-537*	537	179	3M-1953	1953	651
3M-285*	285	95	3M-540*	540	180	3M-2100	2100	700
3M-288*	288	96	3M-549*	549	183	3M-2388*	2388	796
3M-291*	291	97	3M-552*	552	184	3M-2400	2400	800
3M-294*	294	98	3M-561*	561	187	3M-2700	2700	900
3M-297*	297	99	3M-564*	564	188	3M-3000	3000	1000
3M-300*	300	100	3M-570*	570	190	3M-3300	3300	1100
3M-303*	303	101	3M-573*	573	191	3M-3600	3600	1200
3M-306*	306	102	3M-576*	576	192	3M-3900	3900	1300
3M-309*	309	103	3M-579*	579	193	3M-4200	4200	1400
3M-312*	312	104	3M-582*	582	194	3M-4500	4500	1500
3M-315*	315	105	3M-585*	585	195	3M-4800	4800	1600
3M-318*	318	106	3M-588*	588	196	3M-4890	4890	1630
3M-321*	321	107	3M-591*	591	197	3M-4950	4950	1650
3M-324*	324	108	3M-594*	594	198	3M-5100	5100	1700
3M-327*	327	109	3M-597*	597	199	3M-5250	5250	1750
3M-330*	330	110	3M-600*	600	200	3M-5400	5400	1800
3M-333*	333	111	3M-603*	603	201	3M-5598	5598	1866
3M-336*	336	112	3M-606*	606	202	?	?	?
3M-339*	339	113	3M-609*	609	203	?	?

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
5M-120*	120	24	5M-585*	585	117	5M-1050*	1050	210
5M-150*	150	30	5M-590*	590	118	5M-1080*	1080	216
5M-180*	180	36	5M-595*	595	119	5M-1100*	1100	220
5M-195*	195	39	5M-600*	600	120	5M-1115*	1115	223
5M-215*	215	43	5M-610*	610	122	5M-1120*	1120	224
5M-225*	225	45	5M-615*	615	123	5M-1125*	1125	225
5M-230*	230	46	5M-620*	620	124	5M-1135*	1135	227
5M-235*	235	47	5M-625*	625	125	5M-1140*	1140	228
5M-240*	240	48	5M-630*	630	126	5M-1145*	1145	229
5M-245*	245	49	5M-635*	635	127	5M-1150*	1150	230
5M-250*	250	50	5M-640*	640	128	5M-1175*	1175	235
5M-255*	255	51	5M-645*	645	129	5M-1195*	1195	239
5M-260*	260	52	5M-650*	650	130	5M-1200*	1200	240
5M-265*	265	53	5M-660*	660	132	5M-1210*	1210	242
5M-270*	270	54	5M-665*	665	133	5M-1225*	1225	245
5M-275*	275	55	5M-670*	670	134	5M-1235*	1235	247
5M-280*	280	56	5M-675*	675	135	5M-1240*	1240	248
5M-285*	285	57	5M-680*	680	136	5M-1250*	1250	250
5M-295*	295	59	5M-690*	690	138	5M-1270*	1270	254
5M-300*	300	60	5M-695*	695	139	5M-1275*	1275	255
5M-305*	305	61	5M-700*	700	140	5M-1300*	1300	260
5M-310*	310	62	5M-705*	705	141	5M-1350*	1350	270
5M-315*	315	63	5M-710*	710	142	5M-1400*	1400	280
5M-320*	320	64	5M-715	715	143	5M-1420*	1420	284
5M-325*	325	65	5M-720*	720	144	5M-1490*	1490	298
5M-330*	330	66	5M-725*	725	145	5M-1500*	1500	300
5M-340*	340	68	5M-730*	730	146	5M-1530*	1530	306
5M-345*	345	69	5M-740*	740	148	5M-1540*	1540	308
5M-350*	350	70	5M-745*	745	149	5M-1575*	1575	315
5M-355*	355	71	5M-750*	750	150	5M-1590*	1590	318
5M-360*	360	72	5M-755*	755	151	5M-1595*	1595	319
5M-365*	365	73	5M-765*	765	153	5M-1615*	1615	323
5M-370*	370	74	5M-770*	770	154	5M-1685*	1685	337
5M-375*	375	75	5M-775*	775	155	5M-1690*	1690	338
5M-385*	385	77	5M-780*	780	156	5M-1700	1700	340
5M-390*	390	78	5M-785*	785	157	5M-1730	1730	346
5M-400*	400	80	5M-790*	790	158	5M-1790*	1790	358
5M-405*	405	81	5M-800*	800	160	5M-1800*	1800	360
5M-410*	410	82	5M-810*	810	162	5M-1850	1850	370
5M-415*	415	83	5M-815*	815	163	5M-1870*	1870	374
5M-420*	420	84	5M-820*	820	164	5M-1895	1895	379
5M-425*	425	85	5M-825*	825	165	5M-1900	1900	380
5M-430*	430	86	5M-830*	830	166	5M-1915*	1915	383
5M-435*	435	87	5M-835*	835	167	5M-1940*	1940	388
5M-440*	440	88	5M-840*	840	168	5M-1945*	1945	389
5M-450*	450	90	5M-845*	845	169	5M-2000*	2000	400
5M-455*	455	91	5M-850*	850	170	5M-2050	2050	410
5M-460*	460	92	5M-860*	860	172	5M-2060*	2060	412
5M-465*	465	93	5M-870*	870	174	5M-2100*	2100	420
5M-470*	470	94	5M-880*	880	176	5M-2200	2200	440
5M-475*	475	95	5M-890*	890	178	5M-2250	2250	450
5M-480*	480	96	5M-900*	900	180	5M-2350	2350	470
5M-490*	490	98	5M-910*	910	182	5M-2400	2400	480
5M-495*	495	99	5M-920*	920	184	5M-2525	2525	505
5M-500*	500	100	5M-925*	925	185	5M-2600	2600	520
5M-510*	510	102	5M-930*	930	186	5M-2800	2800	560
5M-515*	515	103	5M-935*	935	187	5M-2910*	2910	582
5M-520*	520	104	5M-940*	940	188	5M-3000	3000	600
5M-525*	525	105	5M-945*	945	189	5M-3200*	3200	640
5M-530*	530	106	5M-950*	950	190	5M-3300	3300	660
5M-535*	535	107	5M-960*	960	192	5M-3600	3600	720
5M-540*	540	108	5M-965*	965	193	5M-3800	3800	760
5M-550*	550	110	5M-975*	975	195	5M-4000	4000	800
5M-560*	560	112	5M-980*	980	196	5M-4500	4500	900
5M-565*	565	113	5M-990*	990	198	5M-4800	4800	960
5M-570*	570	114	5M-1000*	1000	200	5M-5300	5300	1060
5M-575*	575	115	5M-1025*	1025	205	?	?	?
5M-580*	580	116	5M-1035*	1035	207	?	?

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
8M-184	184	23	8M-1040*	1040	130	8M-1800*	1800	225
8M-248	248	31	8M-1056*	1056	132	8M-1808*	1808	226
8M-320	320	40	8M-1064*	1064	133	8M-1824*	1824	228
8M-328	328	41	8M-1072*	1072	134	8M-1840*	1840	230
8M-344*	344	43	8M-1080*	1080	135	8M-1856*	1856	232
8M-352	352	44	8M-1088*	1088	136	8M-1864*	1864	233
8M-368*	368	46	8M-1096*	1096	137	8M-1880*	1880	235
8M-376	376	47	8M-1104*	1104	138	8M-1888*	1888	236
8M-400*	400	50	8M-1112*	1112	139	8M-1896*	1896	237
8M-408*	408	51	8M-1120*	1120	140	8M-1904*	1904	238
8M-416*	416	52	8M-1128*	1128	141	8M-1912*	1912	239
8M-424*	424	53	8M-1136*	1136	142	8M-1920*	1920	240
8M-440*	440	55	8M-1144*	1144	143	8M-1936*	1936	242
8M-448*	448	56	8M-1152*	1152	144	8M-1944*	1944	243
8M-456	456	57	8M-1160*	1160	145	8M-1952*	1952	244
8M-480*	480	60	8M-1168*	1168	146	8M-1960*	1960	245
8M-496	496	62	8M-1176*	1176	147	8M-1984*	1984	248
8M-512*	512	64	8M-1184*	1184	148	8M-2000*	2000	250
8M-520*	520	65	8M-1192*	1192	149	8M-2032*	2032	254
8M-528*	528	66	8M-1200*	1200	150	8M-2040*	2040	255
8M-536*	536	67	8M-1216*	1216	152	8M-2056*	2056	257
8M-544*	544	68	8M-1224*	1224	153	8M-2080*	2080	260
8M-560*	560	70	8M-1240*	1240	155	8M-2104*	2104	263
8M-568*	568	71	8M-1248*	1248	156	8M-2120*	2120	265
8M-576*	576	72	8M-1256*	1256	157	8M-2160*	2160	270
8M-584*	584	73	8M-1264*	1264	158	8M-2184*	2184	273
8M-600*	600	75	8M-1272*	1272	159	8M-2200*	2200	275
8M-608	608	76	8M-1280*	1280	160	8M-2224*	2224	278
8M-624*	624	78	8M-1296*	1296	162	8M-2240*	2240	280
8M-632*	632	79	8M-1304*	1304	163	8M-2248*	2248	281
8M-640*	640	80	8M-1312*	1312	164	8M-2256*	2256	282
8M-656*	656	82	8M-1320*	1320	165	8M-2272*	2272	284
8M-664*	664	83	8M-1328*	1328	166	8M-2280*	2280	285
8M-672*	672	84	8M-1344*	1344	168	8M-2304*	2304	288
8M-680*	680	85	8M-1352*	1352	169	8M-2312*	2312	289
8M-688*	688	86	8M-1360*	1360	170	8M-2320*	2320	290
8M-696*	696	87	8M-1384*	1384	173	8M-2352*	2352	294
8M-712*	712	89	8M-1392*	1392	174	8M-2360*	2360	295
8M-720*	720	90	8M-1400*	1400	175	8M-2400*	2400	300
8M-728	728	91	8M-1408*	1408	176	8M-2432*	2432	304
8M-736*	736	92	8M-1416*	1416	177	8M-2440*	2440	305
8M-744*	744	93	8M-1424*	1424	178	8M-2480*	2480	310
8M-760*	760	95	8M-1432*	1432	179	8M-2496*	2496	312
8M-776*	776	97	8M-1440*	1440	180	8M-2504*	2504	313
8M-784*	784	98	8M-1456*	1456	182	8M-2520*	2520	315
8M-800*	800	100	8M-1464*	1464	183	8M-2536*	2536	317
8M-816*	816	102	8M-1480*	1480	185	8M-2600*	2600	325
8M-824*	824	103	8M-1496*	1496	187	8M-2640*	2640	330
8M-832*	832	104	8M-1504*	1504	188	8M-2688*	2688	336
8M-840*	840	105	8M-1512*	1512	189	8M-2800*	2800	350
8M-848*	848	106	8M-1520*	1520	190	8M-2832*	2832	354
8M-856*	856	107	8M-1536*	1536	192	8M-2880*	2880	360
8M-864*	864	108	8M-1544*	1544	193	8M-2920*	2920	365
8M-872*	872	109	8M-1552*	1552	194	8M-3048*	3048	381
8M-880*	880	110	8M-1560*	1560	195	8M-3080*	3080	385
8M-888*	888	111	8M-1576*	1576	197	8M-3120*	3120	390
8M-896*	896	112	8M-1584*	1584	198	8M-3200*	3200	400
8M-904*	904	113	8M-1600*	1600	200	8M-3216*	3216	402
8M-912*	912	114	8M-1608*	1608	201	8M-3280*	3280	410
8M-920*	920	115	8M-1624*	1624	203	8M-3360*	3360	420
8M-928*	928	116	8M-1632*	1632	204	8M-3384*	3384	423
8M-936*	936	117	8M-1640*	1640	205	8M-3400*	3400	425
8M-944*	944	118	8M-1648*	1648	206	8M-3600*	3600	450
8M-952*	952	119	8M-1680*	1680	210	8M-3704	3704	463
8M-960*	960	120	8M-1696*	1696	212	8 M-3824	3824	478
8M-968*	968	121	8M-1704*	1704	213	8M-4000	4000	500
8M-976*	976	122	8M-1720*	1720	215	8M-4400*	4400	550
8M-984*	984	123	8M-1728*	1728	216	8M-4480	4480	560
8M-1000*	1000	125	8M-1744*	1744	218	8M-4896*	4896	612
8M-1008*	1008	126	8M-1760*	1760	220	8M-4960	4960	620
8M-1016*	1016	127	8M-1776*	1776	222	8M-5600	5600	700
8M-1024*	1024	128	8M-1784*	1784	223	?	?	?
8M-1032*	1032	129	8M-1792*	1792	224	?	?

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
14M-826*	826	59	14M-1512*	1512	108	14M-2212*	2212	158
14M-840*	840	60	14M-1540*	1540	110	14M-2240*	2240	160
14M-896*	896	64	14M-1568*	1568	112	14M-2310*	2310	165
14M-924*	924	66	14M-1610*	1610	115	14M-2380*	2380	170
14M-966*	966	69	14M-1638*	1638	117	14M-2450*	2450	175
14M-1008*	1008	72	14M-1652*	1652*	118	14M-2548	2548	182
14M-1036*	1036	74	14M-1666*	1666*	119	14M-2590*	2590	185
14M-1050*	1050	75	14M-1680*	1680*	120	14M-2604*	2604	186
14M-1064*	1064	76	14M-1694	1694	121	14M-2660*	2660	190
14M-1078	1078	77	14M-1736*	1736	124	14M-2744	2744	196
14M-1092*	1092	78	14M-1750*	1750	125	14M-2758*	2758	197
14M-1106	1106	79	14M-1764*	1764	126	14M-2800*	2800	200
14M-1120*	1120	80	14M-1778*	1778	127	14M-2912*	2912	208
14M-1148*	1148	82	14M-1792*	1792	128	14M-2940*	2940	210
14M-1176*	1176	84	14M-1806*	1806	129	14M-3080	3080	220
14M-1190*	1190	85	14M-1820*	1820	130	14M-3150*	3150	225
14M-1246*	1246	89	14M-1848*	1848	132	14M-3360*	3360	240
14M-1260*	1260	90	14M-1862*	1862	133	14M-3416*	3416	244
14M-1288*	1288	92	14M-1890*	1890	135	14M-3500*	3500	250
14M-1302	1302	93	14M-1904*	1904	136	14M-3850*	3850	275
14M-1316*	1316	94	14M-1932*	1932	138	14M-4004*	4004	286
14M-1344*	1344	96	14M-1946*	1946	139	14M-4200	4200	300
14M-1358	1358	97	14M-1960*	1960	140	14M-4326*	4326	309
14M-1400*	1400	100	14M-2002*	2002	143	14M-4578*	4578	327
14M-1414*	1414	101	14M-2044*	2044	146	14M-4760*	4760	340
14M-1428*	1428	102	14M-2072	2072	148	14M-4900	4900	350
14M-1442	1442	103	14M-2086	2086	149	14M-4956	4956	354
14M-1456*	1456	104	14M-2100*	2100	150	14M-5390	5390	385
14M-1470*	1470	105	14M-2156*	2156	154	14M-5600	5600	400
14M-1484*	1484	106	14M-2170*	2170	155	?	?

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
R3M-135	135.00	45	R3M-288*	288.00	96	R3M-585	585.00	195
R3M-138*	138.00	46	R3M-297	297.00	99	R3M-600	600.00	200
R3M-174*	174.00	58	R3M-306	306.00	102	R3M-630	630.00	210
R3M-180*	180.00	60	R3M-312*	312.00	104	R3M-648	648.00	216
R3M-189	189.00	63	R3M-315	315.00	105	R3M-669	669.00	223
R3M-201*	201.00	67	R3M-318*	318.00	106	R3M-693	693.00	231
R3M-204	204.00	68	R3M-327*	327.00	109	R3M-720	720.00	240
R3M-210	210.00	70	R3M-345*	345.00	115	R3M-756	756.00	252
R3M-213*	213.00	71	R3M-372*	372.00	124	R3M-780	780.00	260
R3M-219	219.00	73	R3M-375*	375.00	125	R3M-861	861.00	287
R3M-225*	225.00	75	R3M-378	378.00	126	R3M-870	870.00	290
R3M-228	228.00	76	R3M-405*	405.00	135	R3M-888	888.00	296
R3M-237	237.00	79	R3M-474*	474.00	158	R3M-894	894.00	298
R3M-240	240.00	80	R3M-486*	486.00	162	R3M-990	990.00	330
R3M-246	246.00	82	R3M-489*	489.00	163	R3M-999	999.00	333
R3M-255*	255.00	85	R3M-492	492.00	164	R3M-1062	1062.00	354
R3M-261	261.00	87	R3M-510	510.00	170	R3M-1245	1245.00	415
R3M-264*	264.00	88	R3M-522	522.00	174	R3M-1500	1500.00	500
R3M-270*	270.00	90	R3M-534	534.00	178	R3M-1650	1650.00	550
R3M-273*	273.00	91	R3M-558	558.00	186	R3M-1800	1800.00	600
R3M-276*	276.00	92	R3M-564*	564.00	188	R3M-2100	2100.00	700
R3M-279*	279.00	93	R3M-570	570.00	190	R3M-2400	2400.00	800

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
R5M-200	200.00	40	R5M-550	550.00	110	R5M-1500	1500.00	300
R5M-225	225.00	45	R5M-600	600.00	120	R5M-1550	1550.00	310
R5M-250	250.00	50	R5M-650	650.00	130	R5M-1600	1600.00	320
R5M-265*	265.00	53	R5M-700	700.00	140	R5M-1700	1700.00	340
R5M-270*	270.00	54	R5M-750	750.00	150	R5M-1800	1800.00	360
R5M-300	300.00	60	R5M-800	800.00	160	R5M-1850	1850.00	370
R5M-325*	325.00	65	R5M-825*	825.00	165	R5M-1900	1900.00	380
R5M-350	350.00	70	R5M-900	900.00	180	R5M-1950	1950.00	390
R5M-405	405.00	81	R5M-1000	1000.00	200	R5M-2000*	2000.00	400
R5M-420*	420.00	84	R5M-1100	1100.00	220	R5M-2050	2050.00	410
R5M-440	440.00	88	R5M-1200	1200.00	240	R5M-2100	2100.00	420
R5M-450*	450.00	90	R5M-1250	1250.00	250	R5M-2150	2150.00	430
R5M-475*	475.00	95	R5M-1300	1300.00	260	R5M-2235	2235.00	447
R5M-485	485.00	97	R5M-1350	1350.00	270	R5M-2325	2325.00	465
R5M-500*	500.00	100	R5M-1400	1400.00	280	R5M-2440	2440.00	488
R5M-525*	525.00	105	R5M-1450	1450.00	290	R5M-2500	2500.00	500

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
R8M-504	504.00	63	R8M-1232	1232.00	154	R8M-2184	2184.00	273
R8M-560	560.00	70	R8M-1288	1288.00	161	R8M-2296	2296.00	287
R8M-616	616.00	77	R8M-1456	1456.00	182	R8M-2352	2352.00	294
R8M-672	672.00	84	R8M-1512	1512.00	189	R8M-2408	2408.00	301
R8M-728	728.00	91	R8M-1624	1624.00	203	R8M-2464	2464.00	308
R8M-784	784.00	98	R8M-1680	1680.00	210	R8M-2520	2520.00	315
R8M-800*	800.00	100	R8M-1760*	1760.00	220	R8M-2576	2576.00	322
R8M-856*	856.00	107	R8M-1792	1792.00	224	R8M-2632	2632.00	329
R8M-912*	912.00	114	R8M-1848	1848.00	231	R8M-2688	2688.00	336
R8M-960	960.00	120	R8M-1960	1960.00	245	R8M-2744	2744.00	343
R8M-1008	1008.00	126	R8M-2016	2016.00	252	R8M-2800	2800.00	350
R8M-1120	1120.00	140	R8M-2072	2072.00	259	R8M-2856	2856.00	357
R8M-1176	1176.00	147	R8M-2128	2128.00	266	R8M-4600*	4600.00	575

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
R14M-966	966.00	69	R14M-1400	1400.00	100	R14M-2800	2800.00	200
R14M-980	980.00	70	R14M-1610	1610.00	115	R14M-3150	3150.00	225
R14M-1036	1036.00	74	R14M-1764*	1764.00	126	R14M-3360	3360.00	240
R14M-1050	1050.00	75	R14M-1778	1778.00	127	R14M-3500	3500.00	250
R14M-1078	1078.00	77	R14M-1862*	1862.00	133	R14M-3850	3850.00	275
R14M-1106	1106.00	79	R14M-1890	1890.00	135	R14M-4326	4326.00	309
R14M-1120	1120.00	80	R14M-2100	2100.00	150	R14M-4578	4578.00	327
R14M-1190	1190.00	85	R14M-2310	2310.00	165	R14M-4956	4956.00	354
R14M-1246	1246.00	89	R14M-2450	2450.00	175	?	?	?
R14M-1344	1344.00	96	R14M-2590	2590.00	185	?	?

Automotive timing belt：

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
59RU*	561.98	59	104RU*	990.60	104	132RU*	1257.30	132
60RU*	571.50	60	105RU*	1000.13	105	134RU*	1276.35	134
63RU*	600.08	63	108RU*	1028.70	108	136RU*	1295.40	136
65RU*	619.13	65	109RU*	1038.23	109	137RU*	1304.93	137
70RU*	666.75	70	110RU*	1047.75	110	141RU	1343.03	141
75RU*	714.38	75	111RU*	1057.28	111	144RU	1371.60	144
80RU*	762.00	80	113RU*	1076.33	113	146RU	1390.65	146
83RU*	790.58	83	114RU*	1085.85	114	148RU	1409.70	148
86RU*	819.15	86	117RU*	1114.43	117	149RU*	1419.23	149
91 RU*	866.78	91	119RU*	1133.48	119	151RU*	1438.28	151
92RU*	876.30	92	122RU*	1162.05	122	152RU*	1447.80	152
93RU*	885.83	93	123RU*	1171.58	123	153RU*	1457.33	153
94RU*	895.35	94	124RU	1181.10	124	163RU*	1552.58	163
96RU*	914.40	96	127RU*	1209.68	127	165RU*	1571.63	165
97RU*	923.93	97	129RU*	1128.73	129	173RU*	1647.83	173
99RU	942.98	99	130RU*	1238.25	130	176RU*	1676.40	176

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
60ZB	571.50	60	92ZB	876.30	92	121ZB	1152.53	121
71ZB*	676.28	71	99ZB	942.98	99	122ZB	1162.05	122
73ZB	695.33	73	101ZB	962.03	101	123ZB	1171.58	123
75ZB	714.38	75	104ZB	990.60	104	127ZB	1209.68	127
81ZB	771.53	81	105ZB	1000.13	105	134ZB	1276.35	134
83ZB	790.58	83	108ZB*	1028.70	108	137ZB	1304.93	137
86ZB	819.15	86	111ZB*	1057.28	111	143ZB	1362.08	143
88ZB	838.20	88	117ZB	1114.43	117	145ZB	1381.13	145
91ZB	866.78	91	99ZB	942.98	99	?	?

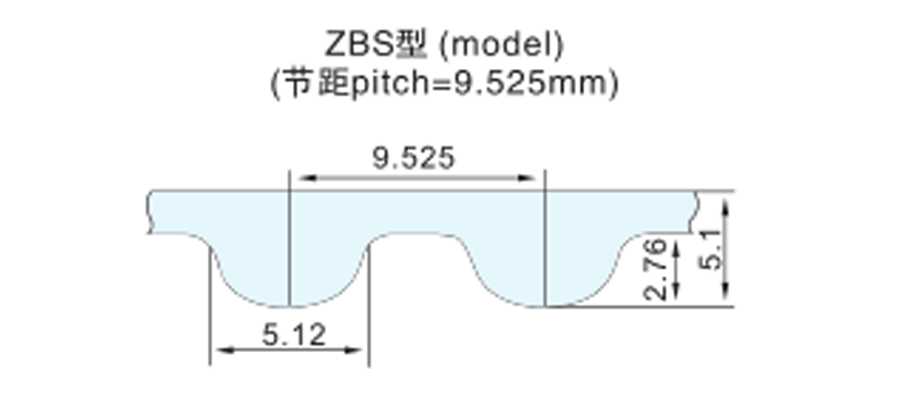

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
55ZBS*	523.88	55	101ZBS	962.03	101	141ZBS	1343.03	141
76ZBS	723.90	76	106ZBS	1009.65	106	143ZBS	1362.08	143
81ZBS	771.53	81	117ZBS	1114.43	117	146ZBS	1390.65	146
83ZBS*	790.58	83	119ZBS*	1133.48	119	149ZBS	1419.23	149
88ZBS	838.20	88	120ZBS	1143.00	120	151ZBS	1438.28	151
91ZBS	866.78	91	122ZBS*	1162.05	122	153ZBS	1457.33	153
92ZBS*	876.30	92	123ZBS*	1171.58	123	163ZBS*	1552.58	163
96ZBS	914.40	96	136ZBS	1295.40	136	165ZBS	1571.63	165
99ZBS	942.98	99	137ZBS	1304.93	137	170ZBS	1619.25	170

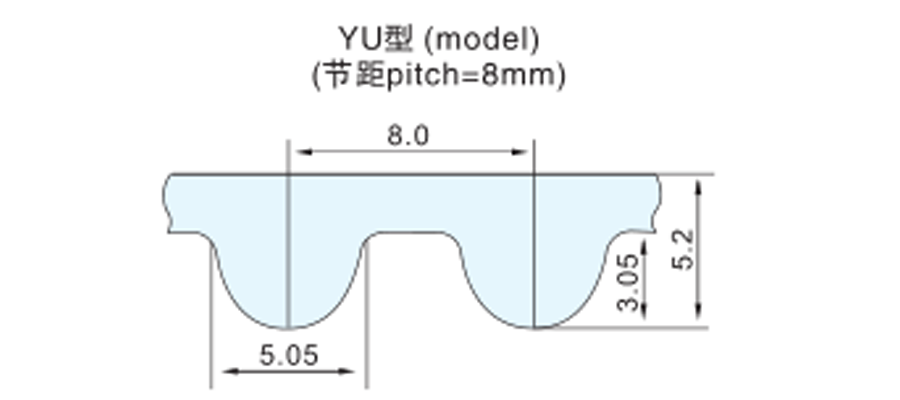

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
65YU*	520.00	65	107YU*	856.00	107	148YU*	1184.00	148
80YU*	640.00	80	109YU*	872.00	109	151YU	1208.00	151
81YU	648.00	81	111YU	888.00	111	154YU*	1323.00	154
83YU*	664.00	83	115YU*	920.00	115	156YU*	1248.00	156
92YU	736.00	92	117YU*	936.00	117	164YU*	1312.00	164
94YU*	752.00	94	121YU	968.00	121	168YU	1344.00	168
96YU*	768.00	96	123YU	984.00	123	173YU*	1384.00	173
99YU*	792.00	99	137YU*	1096.00	137	191YU*	1528.00	191
100YU*	800.00	100	140YU*	1120.00	140	193YU*	1544.00	193
101YU*	808.00	101	145YU*	1160.00	145	207YU*	1656.00	207
104YU	832.00	104	146YU*	1168.00	146	257YU*	2056.00	257

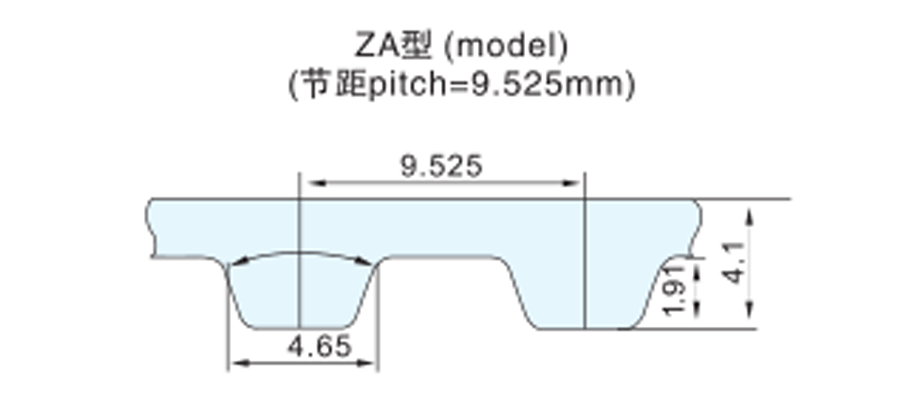

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
54ZA*	514.35	54	99ZA	942.98	99	124ZA*	1181.10	124
55ZA	523.88	55	101ZA	962.03	101	126ZA	1200.15	126
68ZA*	647.70	68	102ZA	971.55	102	127ZA	1209.68	127
69ZA	657.23	69	103ZA	981.08	103	131ZA	1247.78	131
83ZA	790.58	83	104ZA*	990.60	104	133ZA	1266.83	133
84ZA*	800.10	84	105ZA	1000.13	105	135ZA	1285.88	135
88ZA*	838.20	88	107ZA	1019.18	107	137ZA	1304.93	137
89ZA	847.73	89	108ZA*	1028.70	108	140ZA	1333.50	140
90ZA*	857.25	90	109ZA*	1038.23	109	142ZA	1352.55	142
91 ZA*	866.78	91	110ZA	1047.75	110	146ZA	1390.65	146
92ZA*	876.30	92	111ZA*	1057.28	111	147ZA	1400.18	147
94ZA	895.35	94	118ZA*	1123.95	118	150ZA	1428.75	150
95ZA	904.88	95	119ZA*	1133.48	119	164ZA	1562.10	164
98ZA	933.45	98	121ZA*	1152.53	121	?	?

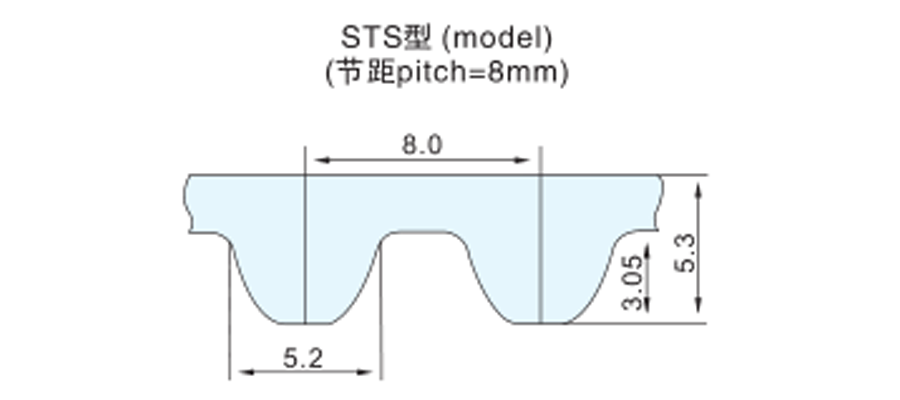

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
65STS*	520.00	65	143STS	1144.00	143	169STS*	1352.00	169
91 STS	728.00	91	146STS*	1168.00	146	173STS*	1384.00	173
HOSTS*	880.00	110	147STS	1176.00	147	191 STS	1528.00	191
112STS	896.00	112	150STS	1200.00	150	192STS	1536.00	192
118STS	944.00	118	161 STS	1288.00	161	193STS	1544.00	193
137STS*	1096.00	137	162STS*	1296.00	162	200STS	1600.00	200
138STS	1104.00	138	163STS	1304.00	163	?	?	?
142STS	1136.00	142	164STS*	1312.00	164	?	?

Specification	Section line length	Tooth number	Specification	Section line length	Tooth number	Specification	Section line length	Tooth number
89MR	847.73	89	110MR*	1047.75	110	135MR*	1285.88	135
91MR	866.78	91	111MR*	1057.28	111	136MR*	1295.40	136
92MR	876.30	92	112MR	1066.80	112	137MR	1304.93	137
97MR*	923.93	97	113MR	1076.33	113	145MR	1381.13	145
98MR	933.45	98	114MR	1085.85	114	146MR	1390.65	146
100MR	952.50	100	122MR	1162.05	122	147MR	1400.18	147
101MR	962.03	101	123MR	1171.58	123	149MR	1419.23	149
104MR*	990.60	104	124MR	1181.10	124	154MR	1466.85	154
107MR	1019.18	107	125MR*	1190.63	125	164MR	1562.10	164
108MR*	1028.70	108	130MR*	1238.25	130	168MR	1600.20	168
109MR*	1038.23	109	134MR*	1276.35	134	169MR	1609.73	169

如有需要，可提供安裝尺寸。

規格	節線長	齒數	規格	節線長	齒數	規格	節線長	齒數
S2M-80	80	40	S2M-304*	304	152	S2M-620	620	310
S2M-90*	90	45	S2M-306*	306	153	S2M-630*	630	315
S2M-92*	92	46	S2M-316*	316	158	S2M-650	650	325
S2M-96*	96	48	S2M-320*	320	160	S2M-656*	656	328
S2M-108*	108	54	S2M-324*	324	162	S2M-660*	660	330
S2M-112*	112	56	S2M-328*	328	164	S2M-666*	666	333
S2M-114*	114	57	S2M-334*	334	167	S2M-688*	688	344
S2M-128*	128	64	S2M-336*	336	168	S2M-710*	710	355
S2M-130*	130	65	S2M-338*	338	169	S2M-726*	726	363
S2M-132*	132	66	S2M-344*	344	172	S2M-750*	750	375
S2M-134*	134	67	S2M-352*	352	176	S2M-760	760	380
S2M-140*	140	70	S2M-354*	354	177	S2M-766*	766	383
S2M-142*	142	71	S2M-360*	360	180	S2M-800*	800	400
S2M-144*	144	72	S2M-370*	370	185	S2M-810*	810	405
S2M-156	156	78	S2M-380*	380	190	S2M-828*	828	414
S2M-158*	158	79	S2M-394*	394	197	S2M-856*	856	428
S2M-160*	160	80	S2M-396*	396	198	S2M-860*	860	430
S2M-168*	168	84	S2M-400*	400	200	S2M-880*	880	440
S2M-172*	172	86	S2M-406*	406	203	S2M-882*	882	441
S2M-176*	176	88	S2M-420*	420	210	S2M-892*	892	446
S2M-180*	180	90	S2M-430*	430	215	S2M-920*	920	460
S2M-184*	184	92	S2M-436*	436	218	S2M-930*	930	465
S2M-188*	188	94	S2M-452*	452	226	S2M-940*	940	470
S2M-192*	192	97	S2M-460*	460	230	S2M-976*	976	488
S2M-198*	198	99	S2M-468*	468	234	S2M-990	990	495
S2M-200*	200	100	S2M-480*	480	240	S2M-1016*	1016	508
S2M-204*	204	102	S2M-500*	500	250	S2M-1100	1100	550
S2M-208*	208	104	S2M-506*	506	253	S2M-1166	1166	583
S2M-210*	210	105	S2M-520*	520	260	S2M-1224*	1224	612
S2M-212*	212	106	S2M-530*	530	265	S2M-1250*	1250	625
S2M-214*	214	107	S2M-536*	536	268	S2M-1274*	1274	637
S2M-218*	218	109	S2M-546*	546	273	S2M-1300	1300	650
S2M-220*	220	110	S2M-548*	548	274	S2M-1400	1400	700
S2M-224*	224	112	S2M-552*	552	276	S2M-1466*	1466	733
S2M-234*	234	117	S2M-556*	556	278	S2M-1480	1480	740
S2M-236*	236	118	S2M-560*	560	280	S2M-1500	1500	750
S2M-260*	260	130	S2M-562*	562	281	S2M-1600	1600	800
S2M-262*	262	131	S2M-568*	568	284	S2M-1800	1800	900
S2M-264*	264	132	S2M-572	572	286	S2M-2000	2000	1000
S2M-272*	272	136	S2M-580*	580	290	S2M-2200	2200	1100
S2M-276*	276	138	S2M-586*	586	293	S2M-2300	2300	1150
S2M-280*	280	140	S2M-590	590	295	S2M-2500	2500	1250
S2M-284*	284	142	S2M-596	596	298	S2M-3000	3000	1500
S2M-290*	290	145	S2M-600*	600	300	S2M-3500	3500	1750
S2M-292*	292	146	S2M-604*	604	302	S2M-4200	4200	2100
S2M-300*	300	150	S2M-610	610	305	S2M-5600	5600	2800

如有需要，可提供安裝尺寸。

規格	節線長	齒數	規格	節線長	齒數	規格	節線長	齒數
S3M-114*	114	38	S3M-333*	333	111	S3M-585*	585	195
S3M-120*	120	40	S3M-336*	336	112	S3M-588*	588	196
S3M-126*	126	42	S3M-339*	339	113	S3M-591*	591	197
S3M-129*	129	43	S3M-345*	345	115	S3M-594*	594	198
S3M-138*	138	46	S3M-351*	351	117	S3M-597*	597	199
S3M-141*	141	47	S3M-354*	354	118	S3M-600*	600	200
S3M-147*	147	49	S3M-360*	360	120	S3M-603*	603	201
S3M-150*	150	50	S3M-363*	363	121	S3M-606*	606	202
S3M-162*	162	54	S3M-366*	366	122	S3M-609*	609	203
S3M-168	168	56	S3M-375*	375	125	S3M-621*	621	207
S3M-174*	174	58	S3M-384*	384	128	S3M-633*	633	211
S3M-177*	177	59	S3M-396*	396	132	S3M-636*	636	212
S3M-180*	180	60	S3M-399*	399	133	S3M-645*	645	215
S3M-183*	183	61	S3M-405	405	135	S3M-657*	657	219
S3M-186*	186	62	S3M-414	414	138	S3M-660*	660	220
S3M-189*	189	63	S3M-417	417	139	S3M-666*	666	222
S3M-192*	192	64	S3M-420*	420	140	S3M-690*	690	230
S3M-195	195	65	S3M-423*	423	141	S3M-705*	705	235
S3M-201*	201	67	S3M-435*	435	145	S3M-711*	711	237
S3M-204*	204	68	S3M-447*	447	149	S3M-714*	714	238
S3M-207*	207	69	S3M-453*	453	151	S3M-738*	738	246
S3M-210*	210	70	S3M-462*	462	154	S3M-750*	750	250
S3M-216*	216	72	S3M-468*	468	156	S3M-753*	753	251
S3M-219*	219	73	S3M-471*	471	157	S3M-765*	765	765
S3M-222*	222	74	S3M-474*	474	158	S3M-780*	780	260
S3M-225	225	75	S3M-477*	477	159	S3M-804*	804	268
S3M-231*	231	77	S3M-480*	480	160	S3M-819*	819	273
S3M-234*	234	78	S3M-483*	483	161	S3M-828*	828	276
S3M-237*	237	79	S3M-486*	486	162	S3M-882*	882	294
S3M-240*	240	80	S3M-489*	489	163	S3M-1188*	1188	396
S3M-243*	243	81	S3M-495*	495	165	S3M-1221*	1221	407
S3M-246*	246	82	S3M-498*	498	166	S3M-1227*	1227	409
S3M-252*	252	84	S3M-501*	501	167	S3M-1236*	1236	412
S3M-255*	255	85	S3M-510*	510	170	S3M-1350	1350	450
S3M-258*	258	86	S3M-513*	513	171	S3M-1500	1500	500
S3M-261*	261	87	S3M-516*	516	172	S3M-1572*	1572	524
S3M-264*	264	88	S3M-519*	519	173	S3M-1596*	1596	532
S3M-267*	267	89	S3M-522	522	174	S3M-1809	1809	603
S3M-270*	270	90	S3M-525*	525	175	S3M-2025	2025	675
S3M-273*	273	91	S3M-534	534	178	S3M-2100	2100	700
S3M-276*	276	92	S3M-537*	537	179	S3M-2115	2115	705
S3M-282*	282	94	S3M-540*	540	180	S3M-2175	2175	725
S3M-285*	285	95	S3M-546*	546	182	S3M-2190	2190	730
S3M-288*	288	96	S3M-549*	549	183	S3M-2250	2250	750
S3M-294*	294	98	S3M-552*	552	184	S3M-2340	2340	780
S3M-300*	300	100	S3M-555*	555	185	S3M-2400	2400	800
S3M-309*	309	103	S3M-558*	558	186	S3M-3000	3000	1000
S3M-312*	312	104	S3M-561*	561	187	S3M-3600	3600	1200
S3M-315*	315	105	S3M-564*	564	188	S3M-4800	4800	1600
S3M-318*	318	106	S3M-570*	570	190	S3M-5340	5340	1780
S3M-321*	321	107	S3M-573*	573	191	S3M-5598	5598	1866
S3M-324*	324	108	S3M-579*	579	193	?	?	?
S3M-327*	327	109	S3M-582*	582	194	?	?

如有需要，可提供安裝尺寸。

規格	節線長	齒數	規格	節線長	齒數	規格	節線長	齒數
S5M-150	150	30	S5M-550*	550	110	S5M-1100*	1100	220
S5M-200	200	40	S5M-560*	560	112	S5M-1115*	1115	223
S5M-225*	225	45	S5M-565*	565	113	S5M-1125*	1125	225
S5M-230*	230	46	S5M-575*	575	115	S5M-1135*	1135	227
S5M-255*	255	51	S5M-590*	590	118	S5M-1145*	1145	229
S5M-260*	260	52	S5M-600*	600	120	S5M-1150*	1150	230
S5M-265*	265	53	S5M-610*	610	122	S5M-1195*	1195	239
S5M-270*	270	54	S5M-615*	615	123	S5M-1200*	1200	240
S5M-285*	285	57	S5M-625*	625	125	S5M-1225*	1225	245
S5M-295*	295	59	S5M-635*	635	127	S5M-1270*	1270	254
S5M-300*	300	60	S5M-640*	640	128	S5M-1295*	1295	259
S5M-320*	320	64	S5M-645*	645	129	S5M-1350*	1350	270
S5M-325*	325	65	S5M-650*	650	130	S5M-1380*	1380	276
S5M-340*	340	68	S5M-655*	655	131	S5M-1420*	1420	284
S5M-350*	350	70	S5M-665*	665	133	S5M-1500*	1500	300
S5M-370*	370	74	S5M-670*	670	134	S5M-1575*	1575	315
S5M-375*	375	75	S5M-675*	675	135	S5M-1585*	1585	317
S5M-380*	380	76	S5M-690*	690	138	S5M-1595*	1595	319
S5M-385*	385	77	S5M-700*	700	140	S5M-1600*	1600	320
S5M-390*	390	78	S5M-710*	710	142	S5M-1605*	1605	321
S5M-400*	400	80	S5M-725*	725	145	S5M-1685*	1685	337
S5M-410*	410	82	S5M-740*	740	148	S5M-1690*	1690	338
S5M-415*	415	83	S5M-750*	750	150	S5M-1700*	1700	340
S5M-420*	420	84	S5M-765*	765	153	S5M-1750	1750	350
S5M-425*	425	85	S5M-770*	770	154	S5M-1800*	1800	360
S5M-430*	430	86	S5M-780*	780	156	S5M-1945*	1945	389
S5M-435*	435	87	S5M-800*	800	160	S5M-2000*	2000	400
S5M-445*	445	89	S5M-810*	810	162	S5M-2100*	2100	420
S5M-450*	450	90	S5M-815*	815	163	S5M-2145*	2145	429
S5M-455*	455	91	S5M-830*	830	166	S5M-2525*	2525	505
S5M-475*	475	95	S5M-850*	850	170	S5M-2895	2895	579
S5M-490*	490	98	S5M-870*	870	174	S5M-3200	3200	640
S5M-500*	500	100	S5M-890*	890	178	S5M-3280*	3280	656
S5M-510*	510	102	S5M-900*	900	180	S5M-3500	3500	700
S5M-520*	520	104	S5M-925*	925	185	S5M-4000	4000	800
S5M-525*	525	105	S5M-935*	935	187	S5M-4600	4600	920
S5M-535*	535	107	S5M-1000*	1000	200	S5M-5000	5000	1000
S5M-540*	540	108	S5M-1050*	1050	210	S5M-5600	5600	1120

如有需要，可提供安裝尺寸。

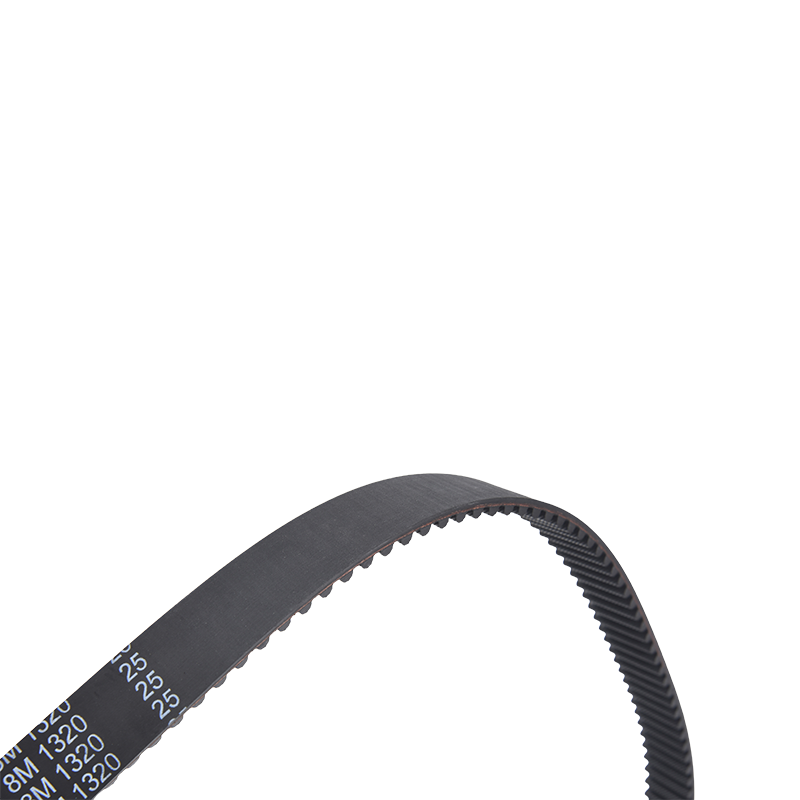

規格	節線長	齒數	規格	節線長	齒數	規格	節線長	齒數
S8M-376*	376	47	S8M-1000*	1000	125	S8M-1632*	1632	204
S8M-400*	400	50	S8M-1016*	1016	127	S8M-1640*	1640	205
S8M-424*	424	53	S8M-1024*	1024	128	S8M-1648*	1648	206
S8M-440*	440	55	S8M-1032*	1032	129	S8M-1672*	1672	209
S8M-464*	464	58	S8M-1040*	1040	130	S8M-1680*	1680	210
S8M-480*	480	60	S8M-1056*	1056	132	S8M-1696*	1696	212
S8M-488*	488	61	S8M-1064*	1064	133	S8M-1704*	1704	213
S8M-496*	496	62	S8M-1072*	1072	134	S8M-1720*	1720	215
S8M-512*	512	64	S8M-1080*	1080	135	S8M-1728*	1728	216
S8M-520*	520	65	S8M-1096*	1096	137	S8M-1760*	1760	220
S8M-528*	528	66	S8M-1112*	1112	139	S8M-1776*	1776	222
S8M-560*	560	70	S8M-1120*	1120	140	S8M-1792*	1792	224
S8M-576*	576	72	S8M-1128*	1128	141	S8M-1800*	1800	225
S8M-584*	584	73	S8M-1136*	1136	142	S8M-1880*	1880	235
S8M-592*	592	74	S8M-1152*	1152	144	S8M-1904*	1904	238
S8M-600*	600	75	S8M-1160*	1160	145	S8M-1912*	1912	239
S8M-608*	608	76	S8M-1168*	1168	146	S8M-1936*	1936	242
S8M-632*	632	79	S8M-1184*	1184	148	S8M-1952*	1952	244
S8M-640*	640	80	S8M-1192*	1192	149	S8M-2000*	2000	250
S8M-656*	656	82	S8M-1200*	1200	150	S8M-2032*	2032	254
S8M-680*	680	85	S8M-1216*	1216	152	S8M-2048*	2048	256
S8M-696*	696	87	S8M-1224*	1224	153	S8M-2056*	2056	257
S8M-712*	712	89	S8M-1240*	1240	155	S8M-2104*	2104	263
S8M-720*	720	90	S8M-1248*	1248	156	S8M-2120*	2120	265
S8M-752*	752	94	S8M-1256*	1256	157	S8M-2160*	2160	270
S8M-760*	760	95	S8M-1264*	1264	158	S8M-2240*	2240	280
S8M-776*	776	97	S8M-1280*	1280	160	S8M-2272*	2272	284
S8M-792*	792	99	S8M-1296*	1296	162	S8M-2304*	2304	288
S8M-800*	800	100	S8M-1304*	1304	163	S8M-2400*	2400	300
S8M-824*	824	103	S8M-1312*	1312	164	S8M-2432*	2432	304
S8M-832*	832	104	S8M-1320*	1320	165	S8M-2496*	2496	312
S8M-840*	840	105	S8M-1344*	1344	168	S8M-2504*	2504	313
S8M-848*	848	106	S8M-1352*	1352	169	S8M-2600*	2600	325
S8M-856*	856	107	S8M-1360*	1360	170	S8M-2680*	2680	335
S8M-864*	864	108	S8M-1368*	1368	171	S8M-2800*	2800	350
S8M-880*	880	110	S8M-1384*	1384	173	S8M-2848*	2848	356
S8M-888*	888	111	S8M-1392*	1392	174	S8M-2864*	2864	358
S8M-896*	896	112	S8M-1400*	1400	175	S8M-2880*	2880	360
S8M-904*	904	113	S8M-1424*	1424	178	S8M-2920*	2920	365
S8M-912*	912	114	S8M-1440*	1440	180	S8M-3048*	3048	381
S8M-920*	920	115	S8M-1480*	1480	185	S8M-3200*	3200	400
S8M-928*	928	116	S8M-1512*	1512	189	S8M-3280*	3280	410
S8M-936*	936	117	S8M-1520*	1520	190	S8M-3680*	3680	460
S8M-944*	944	118	S8M-1528*	1528	191	S8M-4480	4480	560
S8M-952*	952	119	S8M-1544*	1544	193	S8M-4880*	4880	610
S8M-960*	960	120	S8M-1552*	1552	194	S8M-5320*	5320	665
S8M-976*	976	122	S8M-1592*	1592	199	S8M-5600	5600	700
S8M-984*	984	123	S8M-1600*	1600	200	?	?	?
S8M-992*	992	124	S8M-1624*	1624	203	?	?

如有需要，可提供安裝尺寸。

規格	節線長	齒數	規格	節線長	齒數	規格	節線長	齒數
2M-52*	52	26	2M-232*	232	116	2M-460*	460	230
2M-66*	66	33	2M-234*	234	117	2M-468*	468	234
2M-78*	78	39	2M-240*	240	120	2M-470*	470	235
2M-82*	82	41	2M-242*	242	121	2M-476*	476	238
2M-86*	86	43	2M-244*	244	122	2M-478*	478	239
2M-90*	90	45	2M-248*	248	124	2M-488*	488	244
2M-92*	92	46	2M-250*	250	125	2M-490*	490	245
2M-96*	96	48	2M-252*	252	126	2M-492*	492	246
2M-100*	100	50	2M-254*	254	127	2M-494*	494	247
2M-108*	108	54	2M-256*	256	128	2M-500*	500	250
2M-110*	110	55	2M-260*	260	130	2M-506*	506	253
2M-112*	112	56	2M-262*	262	131	2M-516*	516	258
2M-114*	114	57	2M-264*	264	132	2M-530*	530	265
2M-116*	116	58	2M-266*	266	133	2M-558*	558	279
2M-118*	118	59	2M-268*	268	134	2M-578*	578	289
2M-120*	120	60	2M-270*	270	135	2M-600*	600	300
2M-122*	122	61	2M-274*	274	137	2M-622*	622	311
2M-124*	124	62	2M-276*	276	138	2M-634*	634	317
2M-126*	126	63	2M-280*	280	140	2M-640*	640	320
2M-128*	128	64	2M-282*	282	141	2M-656*	656	328
2M-130*	130	65	2M-280*	280	140	2M-660*	660	330
2M-134*	134	67	2M-286*	286	143	2M-686*	686	343
2M-138*	138	69	2M-288*	288	144	2M-690*	690	345
2M-140*	140	70	2M-290*	290	145	2M-702*	702	351
2M-142*	142	71	2M-292*	292	146	2M-730*	730	365
2M-144*	144	72	2M-294*	294	147	2M-750	750	375
2M-146*	146	73	2M-296*	296	148	2M-782*	782	391
2M-148*	148	74	2M-300*	300	150	2M-800	800	400
2M-150*	150	75	2M-304*	304	152	2M-810*	810	405
2M-152*	152	76	2M-306*	306	153	2M-840*	840	420
2M-154*	154	77	2M-310*	310	155	2M-850	850	425
2M-156*	156	78	2M-312*	312	156	2M-852*	852	426
2M-158*	158	79	2M-320*	320	160	2M-926	926	463
2M-160*	160	80	2M-322*	322	161	2M-930*	930	465
2M-162*	162	81	2M-324*	324	162	2M-1068*	1068	534
2M-164*	164	82	2M-328*	328	164	2M-1100	1100	550
2M-168*	168	84	2M-336*	336	168	2M-1150*	1150	575
2M-170*	170	85	2M-338*	338	169	2M-1500	1500	750
2M-172*	172	86	2M-340*	340	170	2M-1510*	1510	755
2M-174*	174	87	2M-342*	342	171	2M-1800	1800	900
2M-176*	176	88	2M-344*	344	172	2M-2000	2000	1000
2M-178*	178	89	2M-348*	348	174	2M-2200	2200	1100
2M-180*	180	90	2M-350*	350	175	2M-2270*	2270	1135
2M-184*	184	92	2M-352	352	176	2M-2500	2500	1250
2M-186*	186	93	2M-354*	354	177	2M-2800	2800	1400
2M-188*	188	94	2M-356*	356	178	2M-2900	2900	1450
2M-190*	190	95	2M-364*	364	182	2M-3000	3000	1500
2M-192*	192	96	2M-366*	366	183	2M-3200	3200	1600
2M-194*	194	97	2M-370*	370	185	2M-3400	3400	1700
2M-196*	196	98	2M-372*	372	186	2M-3700	3700	1850
2M-200*	200	100	2M-380*	380	190	2M-3800	3800	1900
2M-208*	208	104	2M-384*	384	192	2M-4000	4000	2000
2M-210*	210	105	2M-388*	388	194	2M-4500	4500	2250
2M-212*	212	106	2M-392*	392	196	2M-4700	4700	2350
2M-214*	214	107	2M-394*	394	197	2M-4900	4900	2450
2M-216*	216	108	2M-400*	400	200	2M-5000	5000	2500
2M-218*	218	109	2M-410*	410	205	2M-5100	5100	2550
2M-220*	220	110	2M-420*	420	210	2M-5200	5200	2600
2M-224*	224	112	2M-428*	428	214	2M-5400	5400	2700
2M-226*	226	113	2M-440*	440	220	2M-5600	5600	2800
2M-230*	230	115	2M-448*	448	224	?	?

如有需要，可提供安裝尺寸。

規格	節線長	齒數	規格	節線長	齒數	規格	節線長	齒數
3M-105*	105	35	3M-342*	342	114	3M-612*	612	204
3M-111*	111	37	3M-345*	345	115	3M-627*	627	209
3M-114*	114	38	3M-348*	348	116	3M-630*	630	210
3M-117*	117	39	3M-351*	351	117	3M-633*	633	211
3M-120*	120	40	3M-357*	357	119	3M-636*	636	212
3M-123*	123	41	3M-360*	360	120	3M-645*	645	215
3M-126*	126	42	3M-363*	363	121	3M-648*	648	216
3M-129*	129	43	3M-366*	366	122	3M-657*	657	219
3M-132*	132	44	3M-369*	369	123	3M-660*	660	220
3M-135*	135	45	3M-372*	372	124	3M-663*	663	221
3M-138*	138	46	3M-375*	375	125	3M-669*	669	223
3M-141*	141	47	3M-378*	378	126	3M-672*	672	224
3M-144*	144	48	3M-381*	381	127	3M-675*	675	225
3M-147*	147	49	3M-384*	384	128	3M-684*	684	228
3M-150*	150	50	3M-387*	387	129	3M-687*	687	229
3M-153*	153	51	3M-390*	390	130	3M-696*	696	232
3M-156*	156	52	3M-393*	393	131	3M-708*	708	236
3M-159*	159	53	3M-396*	396	132	3M-711*	711	237
3M-162*	162	54	3M-399*	399	133	3M-717*	717	239
3M-165*	165	55	3M-402*	402	134	3M-732*	732	244
3M-168*	168	56	3M-405*	405	135	3M-735*	735	245
3M-171*	171	57	3M-411*	411	137	3M-738*	738	246
3M-174*	174	58	3M-417*	417	139	3M-753*	753	251
3M-177*	177	59	3M-420*	420	140	3M-756*	756	252
3M-180*	180	60	3M-423*	423	141	3M-768*	768	256
3M-183*	183	61	3M-426*	426	142	3M-804*	804	268
3M-186*	186	62	3M-432*	432	144	3M-810*	810	270
3M-189*	189	63	3M-435*	435	145	3M-813*	813	271
3M-192*	192	64	3M-438*	438	146	3M-843*	843	281
3M-195*	195	65	3M-441*	441	147	3M-858*	858	286
3M-198*	198	66	3M-444*	444	148	3M-885*	885	295
3M-201*	201	67	3M-447*	447	149	3M-900*	900	300
3M-204*	204	68	3M-450*	450	150	3M-909*	909	303
3M-207*	207	69	3M-453*	453	151	3M-921*	921	307
3M-210*	210	70	3M-456*	456	152	3M-936*	936	312
3M-213*	213	71	3M-459*	459	153	3M-960*	960	320
3M-216*	216	72	3M-462*	462	154	3M-966*	966	322
3M-219*	219	73	3M-465*	465	155	3M-1014*	1014	338
3M-222*	222	74	3M-468	468	156	3M-1050*	1050	350
3M-225*	225	75	3M-474*	474	158	3M-1062*	1062	354
3M-228*	228	76	3M-477*	477	159	3M-1071*	1071	357
3M-231*	231	77	3M-480*	480	160	3M-1125*	1125	375
3M-234*	234	78	3M-483*	483	161	3M-1245*	1245	415
3M-237*	237	79	3M-486*	486	162	3M-1263*	1263	421
3M-240*	240	80	3M-489*	489	163	3M-1275	1275	425
3M-243*	243	81	3M-492*	492	164	3M-1278	1278	426
3M-246*	246	82	3M-495*	495	165	3M-1290	1290	430
3M-249*	249	83	3M-498*	498	166	3M-1305	1305	435
3M-252*	252	84	3M-501*	501	167	3M-1320	1320	440
3M-255*	255	85	3M-504*	504	168	3M-1344*	1344	448
3M-258*	258	86	3M-507*	507	169	3M-1350	1350	450
3M-261*	261	87	3M-510*	510	170	3M-1464*	1464	488
3M-264*	264	88	3M-513*	513	171	3M-1500	1500	500
3M-267*	267	89	3M-519*	519	173	3M-1530*	1530	510
3M-270*	270	90	3M-522*	522	174	3M-1569*	1569	523
3M-273*	273	91	3M-525*	525	175	3M-1680*	1680	560
3M-276*	276	92	3M-531*	531	177	3M-1800	1800	600
3M-279*	279	93	3M-534*	534	178	3M-1863*	1863	621
3M-282*	282	94	3M-537*	537	179	3M-1953	1953	651
3M-285*	285	95	3M-540*	540	180	3M-2100	2100	700
3M-288*	288	96	3M-549*	549	183	3M-2388*	2388	796
3M-291*	291	97	3M-552*	552	184	3M-2400	2400	800
3M-294*	294	98	3M-561*	561	187	3M-2700	2700	900
3M-297*	297	99	3M-564*	564	188	3M-3000	3000	1000
3M-300*	300	100	3M-570*	570	190	3M-3300	3300	1100
3M-303*	303	101	3M-573*	573	191	3M-3600	3600	1200
3M-306*	306	102	3M-576*	576	192	3M-3900	3900	1300
3M-309*	309	103	3M-579*	579	193	3M-4200	4200	1400
3M-312*	312	104	3M-582*	582	194	3M-4500	4500	1500
3M-315*	315	105	3M-585*	585	195	3M-4800	4800	1600
3M-318*	318	106	3M-588*	588	196	3M-4890	4890	1630
3M-321*	321	107	3M-591*	591	197	3M-4950	4950	1650
3M-324*	324	108	3M-594*	594	198	3M-5100	5100	1700
3M-327*	327	109	3M-597*	597	199	3M-5250	5250	1750
3M-330*	330	110	3M-600*	600	200	3M-5400	5400	1800
3M-333*	333	111	3M-603*	603	201	3M-5598	5598	1866
3M-336*	336	112	3M-606*	606	202	?	?	?
3M-339*	339	113	3M-609*	609	203	?	?

如有需要，可提供安裝尺寸。

規格	節線長	齒數	規格	節線長	齒數	規格	節線長	齒數
5M-120*	120	24	5M-585*	585	117	5M-1050*	1050	210
5M-150*	150	30	5M-590*	590	118	5M-1080*	1080	216
5M-180*	180	36	5M-595*	595	119	5M-1100*	1100	220
5M-195*	195	39	5M-600*	600	120	5M-1115*	1115	223
5M-215*	215	43	5M-610*	610	122	5M-1120*	1120	224
5M-225*	225	45	5M-615*	615	123	5M-1125*	1125	225
5M-230*	230	46	5M-620*	620	124	5M-1135*	1135	227
5M-235*	235	47	5M-625*	625	125	5M-1140*	1140	228
5M-240*	240	48	5M-630*	630	126	5M-1145*	1145	229
5M-245*	245	49	5M-635*	635	127	5M-1150*	1150	230
5M-250*	250	50	5M-640*	640	128	5M-1175*	1175	235
5M-255*	255	51	5M-645*	645	129	5M-1195*	1195	239
5M-260*	260	52	5M-650*	650	130	5M-1200*	1200	240
5M-265*	265	53	5M-660*	660	132	5M-1210*	1210	242
5M-270*	270	54	5M-665*	665	133	5M-1225*	1225	245
5M-275*	275	55	5M-670*	670	134	5M-1235*	1235	247
5M-280*	280	56	5M-675*	675	135	5M-1240*	1240	248
5M-285*	285	57	5M-680*	680	136	5M-1250*	1250	250
5M-295*	295	59	5M-690*	690	138	5M-1270*	1270	254
5M-300*	300	60	5M-695*	695	139	5M-1275*	1275	255
5M-305*	305	61	5M-700*	700	140	5M-1300*	1300	260
5M-310*	310	62	5M-705*	705	141	5M-1350*	1350	270
5M-315*	315	63	5M-710*	710	142	5M-1400*	1400	280
5M-320*	320	64	5M-715	715	143	5M-1420*	1420	284
5M-325*	325	65	5M-720*	720	144	5M-1490*	1490	298
5M-330*	330	66	5M-725*	725	145	5M-1500*	1500	300
5M-340*	340	68	5M-730*	730	146	5M-1530*	1530	306
5M-345*	345	69	5M-740*	740	148	5M-1540*	1540	308
5M-350*	350	70	5M-745*	745	149	5M-1575*	1575	315
5M-355*	355	71	5M-750*	750	150	5M-1590*	1590	318
5M-360*	360	72	5M-755*	755	151	5M-1595*	1595	319
5M-365*	365	73	5M-765*	765	153	5M-1615*	1615	323
5M-370*	370	74	5M-770*	770	154	5M-1685*	1685	337
5M-375*	375	75	5M-775*	775	155	5M-1690*	1690	338
5M-385*	385	77	5M-780*	780	156	5M-1700	1700	340
5M-390*	390	78	5M-785*	785	157	5M-1730	1730	346
5M-400*	400	80	5M-790*	790	158	5M-1790*	1790	358
5M-405*	405	81	5M-800*	800	160	5M-1800*	1800	360
5M-410*	410	82	5M-810*	810	162	5M-1850	1850	370
5M-415*	415	83	5M-815*	815	163	5M-1870*	1870	374
5M-420*	420	84	5M-820*	820	164	5M-1895	1895	379
5M-425*	425	85	5M-825*	825	165	5M-1900	1900	380
5M-430*	430	86	5M-830*	830	166	5M-1915*	1915	383
5M-435*	435	87	5M-835*	835	167	5M-1940*	1940	388
5M-440*	440	88	5M-840*	840	168	5M-1945*	1945	389
5M-450*	450	90	5M-845*	845	169	5M-2000*	2000	400
5M-455*	455	91	5M-850*	850	170	5M-2050	2050	410
5M-460*	460	92	5M-860*	860	172	5M-2060*	2060	412
5M-465*	465	93	5M-870*	870	174	5M-2100*	2100	420
5M-470*	470	94	5M-880*	880	176	5M-2200	2200	440
5M-475*	475	95	5M-890*	890	178	5M-2250	2250	450
5M-480*	480	96	5M-900*	900	180	5M-2350	2350	470
5M-490*	490	98	5M-910*	910	182	5M-2400	2400	480
5M-495*	495	99	5M-920*	920	184	5M-2525	2525	505
5M-500*	500	100	5M-925*	925	185	5M-2600	2600	520
5M-510*	510	102	5M-930*	930	186	5M-2800	2800	560
5M-515*	515	103	5M-935*	935	187	5M-2910*	2910	582
5M-520*	520	104	5M-940*	940	188	5M-3000	3000	600
5M-525*	525	105	5M-945*	945	189	5M-3200*	3200	640
5M-530*	530	106	5M-950*	950	190	5M-3300	3300	660
5M-535*	535	107	5M-960*	960	192	5M-3600	3600	720
5M-540*	540	108	5M-965*	965	193	5M-3800	3800	760
5M-550*	550	110	5M-975*	975	195	5M-4000	4000	800
5M-560*	560	112	5M-980*	980	196	5M-4500	4500	900
5M-565*	565	113	5M-990*	990	198	5M-4800	4800	960
5M-570*	570	114	5M-1000*	1000	200	5M-5300	5300	1060
5M-575*	575	115	5M-1025*	1025	205	?	?	?
5M-580*	580	116	5M-1035*	1035	207	?	?

如有需要，可提供安裝尺寸。

規格	節線長	齒數	規格	節線長	齒數	規格	節線長	齒數
8M-184	184	23	8M-1040*	1040	130	8M-1800*	1800	225
8M-248	248	31	8M-1056*	1056	132	8M-1808*	1808	226
8M-320	320	40	8M-1064*	1064	133	8M-1824*	1824	228
8M-328	328	41	8M-1072*	1072	134	8M-1840*	1840	230
8M-344*	344	43	8M-1080*	1080	135	8M-1856*	1856	232
8M-352	352	44	8M-1088*	1088	136	8M-1864*	1864	233
8M-368*	368	46	8M-1096*	1096	137	8M-1880*	1880	235
8M-376	376	47	8M-1104*	1104	138	8M-1888*	1888	236
8M-400*	400	50	8M-1112*	1112	139	8M-1896*	1896	237
8M-408*	408	51	8M-1120*	1120	140	8M-1904*	1904	238
8M-416*	416	52	8M-1128*	1128	141	8M-1912*	1912	239
8M-424*	424	53	8M-1136*	1136	142	8M-1920*	1920	240
8M-440*	440	55	8M-1144*	1144	143	8M-1936*	1936	242
8M-448*	448	56	8M-1152*	1152	144	8M-1944*	1944	243
8M-456	456	57	8M-1160*	1160	145	8M-1952*	1952	244
8M-480*	480	60	8M-1168*	1168	146	8M-1960*	1960	245
8M-496	496	62	8M-1176*	1176	147	8M-1984*	1984	248
8M-512*	512	64	8M-1184*	1184	148	8M-2000*	2000	250
8M-520*	520	65	8M-1192*	1192	149	8M-2032*	2032	254
8M-528*	528	66	8M-1200*	1200	150	8M-2040*	2040	255
8M-536*	536	67	8M-1216*	1216	152	8M-2056*	2056	257
8M-544*	544	68	8M-1224*	1224	153	8M-2080*	2080	260
8M-560*	560	70	8M-1240*	1240	155	8M-2104*	2104	263
8M-568*	568	71	8M-1248*	1248	156	8M-2120*	2120	265
8M-576*	576	72	8M-1256*	1256	157	8M-2160*	2160	270
8M-584*	584	73	8M-1264*	1264	158	8M-2184*	2184	273
8M-600*	600	75	8M-1272*	1272	159	8M-2200*	2200	275
8M-608	608	76	8M-1280*	1280	160	8M-2224*	2224	278
8M-624*	624	78	8M-1296*	1296	162	8M-2240*	2240	280
8M-632*	632	79	8M-1304*	1304	163	8M-2248*	2248	281
8M-640*	640	80	8M-1312*	1312	164	8M-2256*	2256	282
8M-656*	656	82	8M-1320*	1320	165	8M-2272*	2272	284
8M-664*	664	83	8M-1328*	1328	166	8M-2280*	2280	285
8M-672*	672	84	8M-1344*	1344	168	8M-2304*	2304	288
8M-680*	680	85	8M-1352*	1352	169	8M-2312*	2312	289
8M-688*	688	86	8M-1360*	1360	170	8M-2320*	2320	290
8M-696*	696	87	8M-1384*	1384	173	8M-2352*	2352	294
8M-712*	712	89	8M-1392*	1392	174	8M-2360*	2360	295
8M-720*	720	90	8M-1400*	1400	175	8M-2400*	2400	300
8M-728	728	91	8M-1408*	1408	176	8M-2432*	2432	304
8M-736*	736	92	8M-1416*	1416	177	8M-2440*	2440	305
8M-744*	744	93	8M-1424*	1424	178	8M-2480*	2480	310
8M-760*	760	95	8M-1432*	1432	179	8M-2496*	2496	312
8M-776*	776	97	8M-1440*	1440	180	8M-2504*	2504	313
8M-784*	784	98	8M-1456*	1456	182	8M-2520*	2520	315
8M-800*	800	100	8M-1464*	1464	183	8M-2536*	2536	317
8M-816*	816	102	8M-1480*	1480	185	8M-2600*	2600	325
8M-824*	824	103	8M-1496*	1496	187	8M-2640*	2640	330
8M-832*	832	104	8M-1504*	1504	188	8M-2688*	2688	336
8M-840*	840	105	8M-1512*	1512	189	8M-2800*	2800	350
8M-848*	848	106	8M-1520*	1520	190	8M-2832*	2832	354
8M-856*	856	107	8M-1536*	1536	192	8M-2880*	2880	360
8M-864*	864	108	8M-1544*	1544	193	8M-2920*	2920	365
8M-872*	872	109	8M-1552*	1552	194	8M-3048*	3048	381
8M-880*	880	110	8M-1560*	1560	195	8M-3080*	3080	385
8M-888*	888	111	8M-1576*	1576	197	8M-3120*	3120	390
8M-896*	896	112	8M-1584*	1584	198	8M-3200*	3200	400
8M-904*	904	113	8M-1600*	1600	200	8M-3216*	3216	402
8M-912*	912	114	8M-1608*	1608	201	8M-3280*	3280	410
8M-920*	920	115	8M-1624*	1624	203	8M-3360*	3360	420
8M-928*	928	116	8M-1632*	1632	204	8M-3384*	3384	423
8M-936*	936	117	8M-1640*	1640	205	8M-3400*	3400	425
8M-944*	944	118	8M-1648*	1648	206	8M-3600*	3600	450
8M-952*	952	119	8M-1680*	1680	210	8M-3704	3704	463
8M-960*	960	120	8M-1696*	1696	212	8 M-3824	3824	478
8M-968*	968	121	8M-1704*	1704	213	8M-4000	4000	500
8M-976*	976	122	8M-1720*	1720	215	8M-4400*	4400	550
8M-984*	984	123	8M-1728*	1728	216	8M-4480	4480	560
8M-1000*	1000	125	8M-1744*	1744	218	8M-4896*	4896	612
8M-1008*	1008	126	8M-1760*	1760	220	8M-4960	4960	620
8M-1016*	1016	127	8M-1776*	1776	222	8M-5600	5600	700
8M-1024*	1024	128	8M-1784*	1784	223	?	?	?
8M-1032*	1032	129	8M-1792*	1792	224	?	?

如有需要，可提供安裝尺寸。

規格	節線長	齒數	規格	節線長	齒數	規格	節線長	齒數
14M-826*	826	59	14M-1512*	1512	108	14M-2212*	2212	158
14M-840*	840	60	14M-1540*	1540	110	14M-2240*	2240	160
14M-896*	896	64	14M-1568*	1568	112	14M-2310*	2310	165
14M-924*	924	66	14M-1610*	1610	115	14M-2380*	2380	170
14M-966*	966	69	14M-1638*	1638	117	14M-2450*	2450	175
14M-1008*	1008	72	14M-1652*	1652*	118	14M-2548	2548	182
14M-1036*	1036	74	14M-1666*	1666*	119	14M-2590*	2590	185
14M-1050*	1050	75	14M-1680*	1680*	120	14M-2604*	2604	186
14M-1064*	1064	76	14M-1694	1694	121	14M-2660*	2660	190
14M-1078	1078	77	14M-1736*	1736	124	14M-2744	2744	196
14M-1092*	1092	78	14M-1750*	1750	125	14M-2758*	2758	197
14M-1106	1106	79	14M-1764*	1764	126	14M-2800*	2800	200
14M-1120*	1120	80	14M-1778*	1778	127	14M-2912*	2912	208
14M-1148*	1148	82	14M-1792*	1792	128	14M-2940*	2940	210
14M-1176*	1176	84	14M-1806*	1806	129	14M-3080	3080	220
14M-1190*	1190	85	14M-1820*	1820	130	14M-3150*	3150	225
14M-1246*	1246	89	14M-1848*	1848	132	14M-3360*	3360	240
14M-1260*	1260	90	14M-1862*	1862	133	14M-3416*	3416	244
14M-1288*	1288	92	14M-1890*	1890	135	14M-3500*	3500	250
14M-1302	1302	93	14M-1904*	1904	136	14M-3850*	3850	275
14M-1316*	1316	94	14M-1932*	1932	138	14M-4004*	4004	286
14M-1344*	1344	96	14M-1946*	1946	139	14M-4200	4200	300
14M-1358	1358	97	14M-1960*	1960	140	14M-4326*	4326	309
14M-1400*	1400	100	14M-2002*	2002	143	14M-4578*	4578	327
14M-1414*	1414	101	14M-2044*	2044	146	14M-4760*	4760	340
14M-1428*	1428	102	14M-2072	2072	148	14M-4900	4900	350
14M-1442	1442	103	14M-2086	2086	149	14M-4956	4956	354
14M-1456*	1456	104	14M-2100*	2100	150	14M-5390	5390	385
14M-1470*	1470	105	14M-2156*	2156	154	14M-5600	5600	400
14M-1484*	1484	106	14M-2170*	2170	155	?	?

如有需要，可提供安裝尺寸。

555sesese
